Defining Map View Display Settings
Additional display settings are available for the Map View.
![Multiview linking](https://media.screensteps.com/image_assets/assets/003/922/639/original/4a3922f7-6915-4cbc-af2e-5acf71bc1df4.png)
To open the settings window:

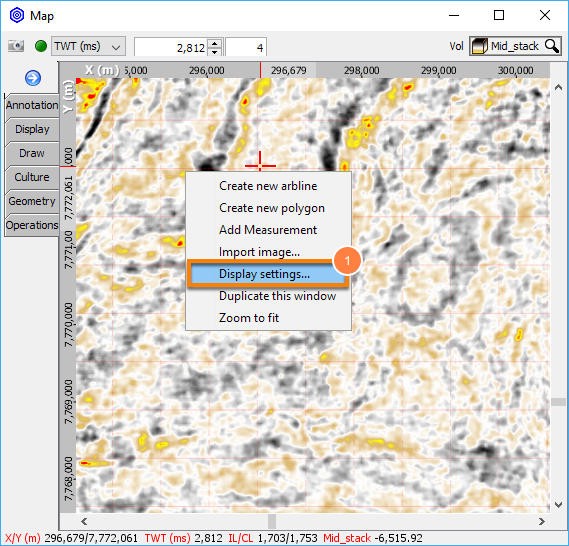

- In the Map View, right-click in the main panel and select Display Settings > Configure...
- Click OK to save the settings and exit the window.
Display options
![Multiview linking](https://media.screensteps.com/image_assets/assets/003/922/641/original/84f45420-9320-4e6e-a5ad-a5eb7e432c76.png)

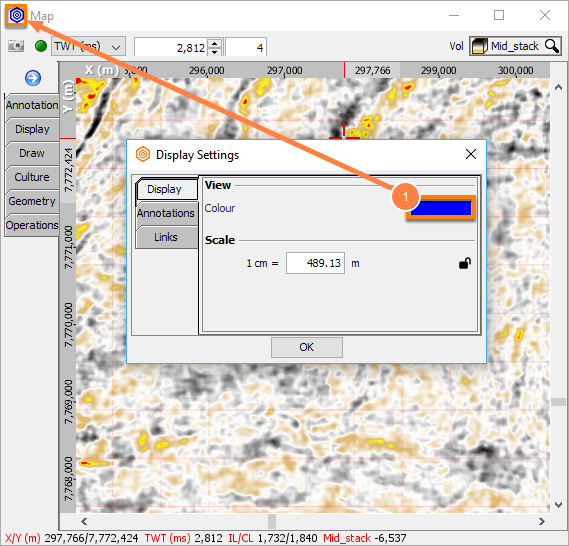

In the Display tab:
- Select a unique Colour to identify the volume selected.
- This also controls the colour of the navigation markers when this view intersects other views.
- Type the horizontal Scale ratio for the X and Y axes.
- Measurements use the units selected in Preferences.
- Click the lock icon to disable scale changing via interactive zooming (right click, mouse-wheel, etc.)

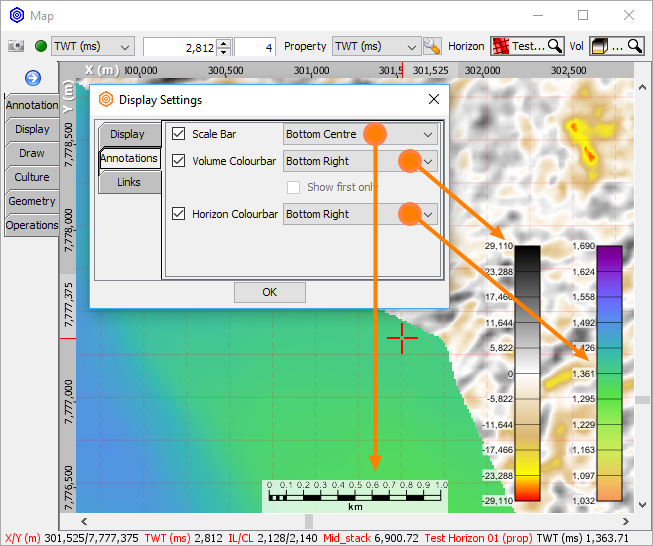

Map Annotations
![](https://media.screensteps.com/image_assets/assets/003/880/675/original/f20333ed-e770-46ab-a4e8-8e832abd8c31.png)
-
Scale Bar: Select the position to place the scale bar in the view.
- The scale bar uses the preferred Display Unit (see Control Panel > Tool > Preferences).
-
Colour Bars:
- See Configuring Colour Bar Annotations for more details
-
Views and Intersections:
- Navigation Markers: Display the red navigation lines (markers) showing the location of related views.
Linking Multiple Views
![](https://media.screensteps.com/image_assets/assets/003/880/678/original/a4a3e352-0e92-49fd-adca-8ab6c7fe3520.png)
In the Links tab:
- Select the check boxes to link the volume, domain, and position with other views.
- All views with the same option checked will share that setting (see Linking Multiple Views).
Interpretation Display
![](https://media.screensteps.com/image_assets/assets/003/880/679/original/ca5aac15-0577-459a-84e6-b0ecfd5fbf7a.png)
Toggle interpretation/s for the current view and all other views that have the interpretation/s linked to the current view. In order to see if a view has interpretation/s linked, go to the “Links” tab
The list of interpretation/s can vary with different views. The user can select “Show All Interpretation/s”, which will select or deselect all of the below available options or alternatively select or deselect each one individually.
- Horizons
- Faults
- Polygons
- Probes
Alternatively, hotkeys are available:
- To toggle all types of interpretation: Ctrl+Shift+A
- To toggle only horizons: Ctrl+Shift+H
- To toggle only faults: Ctrl+Shift+F
- To toggle only polygons: Ctrl+Shift+P
- To toggle only probes: Ctrl+Shift+O
Snapshots
![](https://media.screensteps.com/image_assets/assets/003/880/680/original/ab8c8e00-30d6-4ee5-bd30-fd9e1bc48d58.png)
Use snapshots to recall useful, or hard-to-configure views in Insight.
- See Using Snapshots for more details
