Horizon Details and Configuration

Context menu (Control Panel)

Configure a new horizon

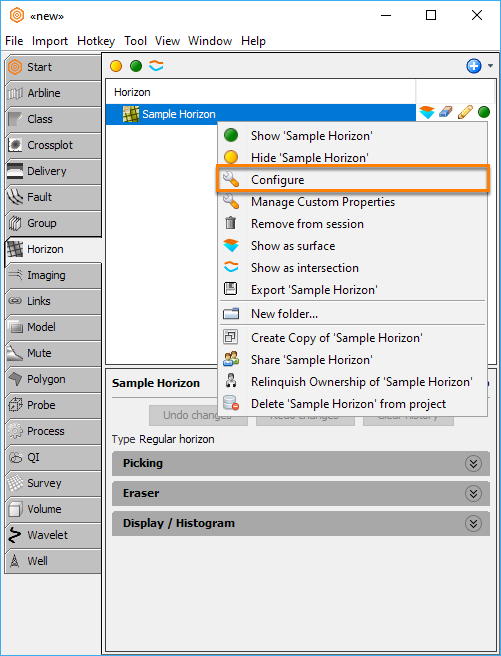

In the Control Panel, right-click on a horizon to bring up a set of operations:

Horizon Configuration

Open the Horizon Configuration window for a horizon in the Control Panel by:

  • Double clicking a horizon
  • Right-clicking and choosing Configure

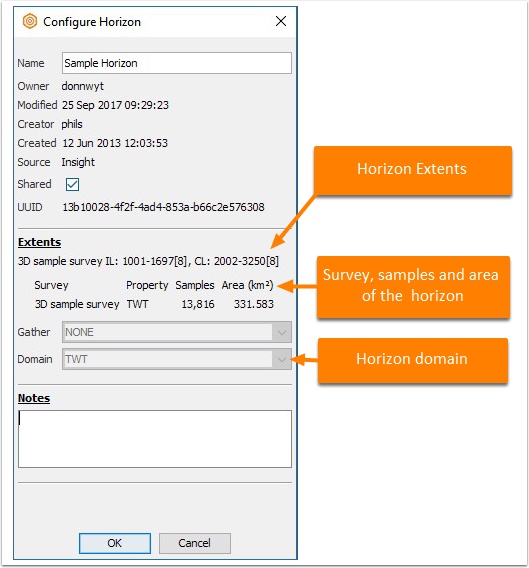

The details and ownership of a horizon is available from the Configure dialog.

After picking, the horizon extent is displayed in the Extents section. It includes:

  • Extent for the horizon according to its type
  • Area for the horizon
    • Survey
    • Horizon domain
    • Samples
    • Area
