Redefining Volume's Survey

In cases where a volume is imported using the wrong survey, this feature allows you to move the volume to its intended survey.

The ability to redefine a volume's survey is only available if:

  • it is a 3D volume
  • you have more than one survey in your session
  • you are the owner of the volume.
    To take ownership, right click on the volume and select
    Take Ownership (see Multi-user Considerations).

If these prerequisites are not met, the Redefine Volume's Survey section of the Configure Volume window will not be visible.

Note: This is NOT the right way to resample a correctly-imported volume onto a different survey. To do that, or if you just want to change the IL/CL numbers assigned to it, export the volume onto a desired survey (see Exporting a Volume). This feature is only to fix import mistakes.

Shift volume to a new location

Shift volume to a new location
  1. In the Control Panel, open the Volume tab.
  2. Select a volume which you want to move to another survey.
  3. Double-click the selected volume or right-click the volume and select Configure 'Volume'. The Configure Volume window will be displayed.

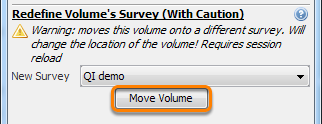

  4. In the Redefine Volume's Survey section, select a New Survey for your volume.

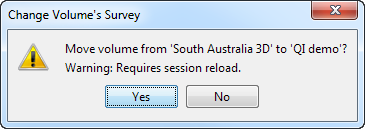

  5. Click Move Volume. The warning box below will appear.
  1. Click Yes to confirm the change of survey.

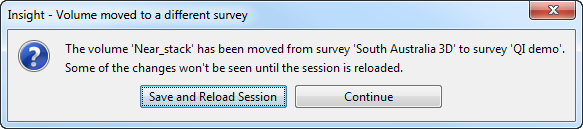

  1. Once Insight has successfully moved the volume to the new survey, a session reload is required for the changes to take effect.
  2. Click Save and Reload Session to save and restart the current session. If you have not selected a session earlier, Insight will prompt you to type a name for the session.
  3. When the session is reloaded, the volume will be on the new survey.
