Calculate a Pseudo-Relief Attribute (TECVA)
Generating a pseudo-relief attribute (also known as TECVA) can assist with structural interpretation. It is often easier to correlate events on the enhanced reflectors, simplifying both fault and horizon interpretation.
Reference: Bulhoes, E. M., 2005, Principio da SismoCamada Elemantar e sua aplicacao a Tecnica Volume de Amplitudes (tecVA). Ninth International Congress of the Brazilian Geophysical Society.
![](https://media.screensteps.com/image_assets/assets/001/759/863/original/52230874-563f-41be-b1b1-d416a666d911.png)

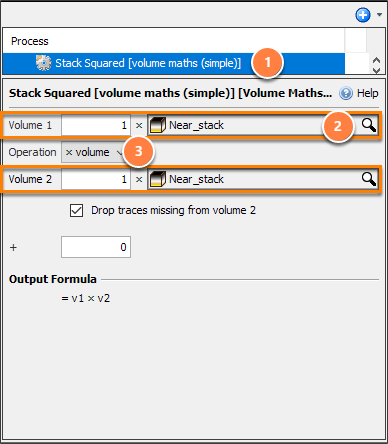

- Go to the Process tab, add a Volume Maths (Simple) process (see Volume Maths Process (Simple)).
-
Volume Maths (Simple) settings:
- Volume 1 and Volume 2: Select the input stack.
- Use the multiply operation: x volume.
- The result will be a selectable volume.
![](https://media.screensteps.com/image_assets/assets/001/759/859/original/224fc430-89bc-462b-97b7-215aa7848530.png)
Next, average the squared input stack from the previous process.

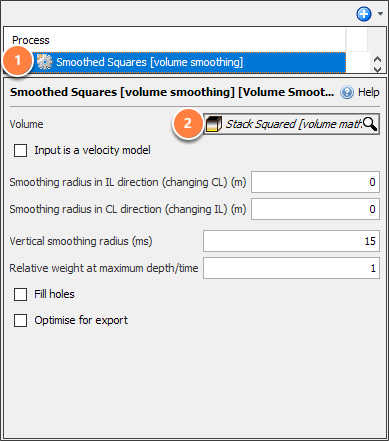

- In the Process tab, add a new Volume Smoothing process (see Volume Smoothing).
- Volume: select the created volume from the previous process.
- A new volume will be created.
![](https://media.screensteps.com/image_assets/assets/001/759/861/original/267ca171-2049-4ba3-805d-2da3e73cd77b.png)

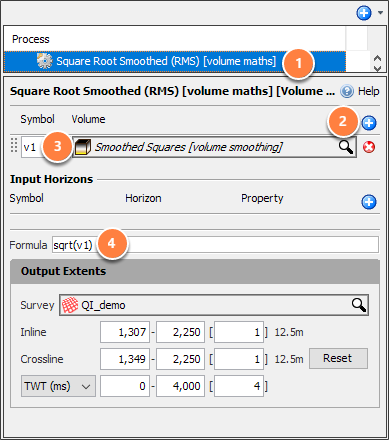

Next, find the square root of the average (from the previous process).
- Add a Volume Maths process from the process tab (see Volume Maths).
- Click the blue "+" in the Volume Maths panel.
-
Volume Maths settings:
- Symbol: v1 - select the volume created from the averaging steps.
- Formula: sqrt (v1)
- A new volume is created.
![](https://media.screensteps.com/image_assets/assets/001/759/857/original/e4f49e71-6c86-4a1f-9ac1-e742cf2fd553.png)
Phase rotate the pseudo-RMS using a process.

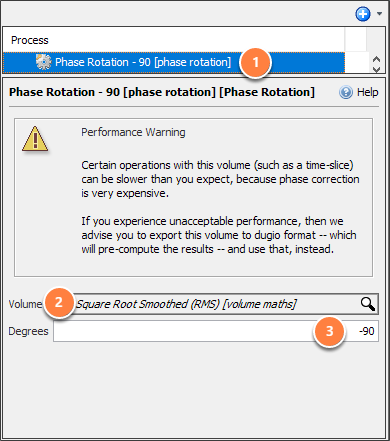

- Add a Phase Rotation process (see Phase Rotation)
-
Phase Rotation settings:
- Volume: select the square root volume.
- Degrees: -90
- The new volume is created.
![](https://media.screensteps.com/image_assets/assets/001/759/865/original/d5f0c38d-7496-4f34-8f47-2e09d9532e83.png)

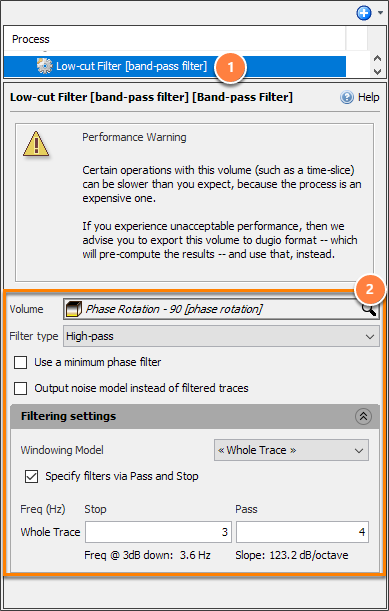

Finally, apply a Low-cut filter to remove low-frequency vertical striping.
- In the Process tab, add a Band-pass Filter process (see Band-pass Filter process).
-
Band-pass Filter settings:
- Volume: choose the phase-rotation volume
- File type: choose High-pass
- Windowing Model: select <<Whole Trace>>
- Stop: 2Hz
- Pass: 3Hz
- If the result looks "smeared", try increasing both the Stop and Pass values by 1 or 2 Hz.

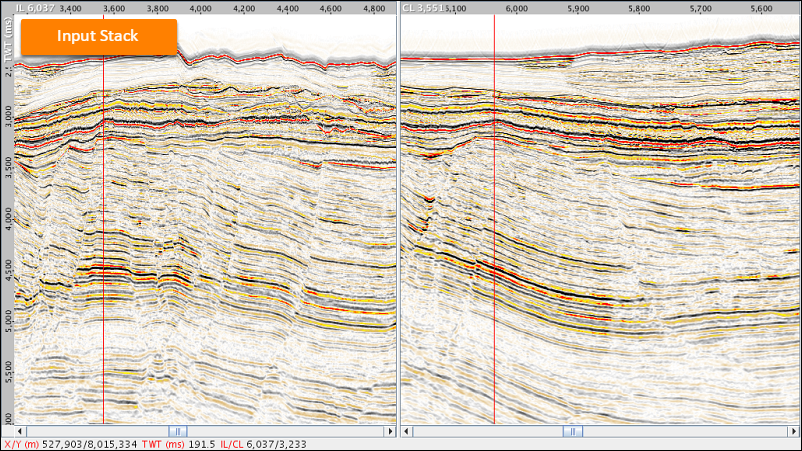

![](https://media.screensteps.com/image_assets/assets/001/763/342/original/2f55b37a-64c5-4be8-8e5d-138668c75588.png)

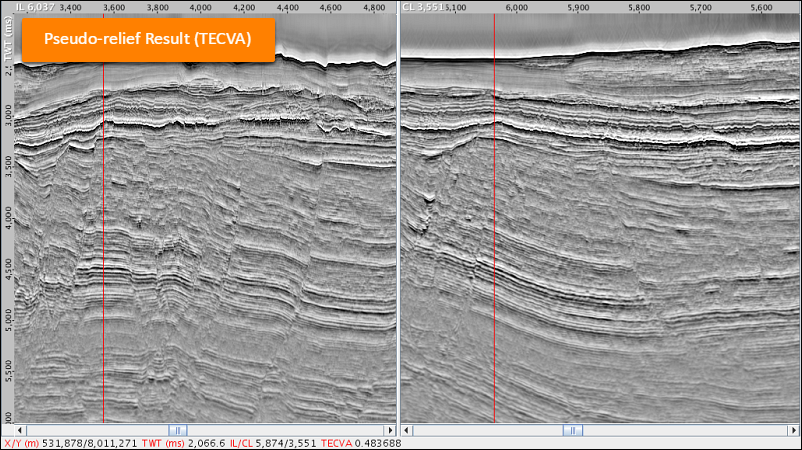

![](https://media.screensteps.com/image_assets/assets/001/763/341/original/624a433d-1d13-41f9-9be4-d79f898cfd8e.png)

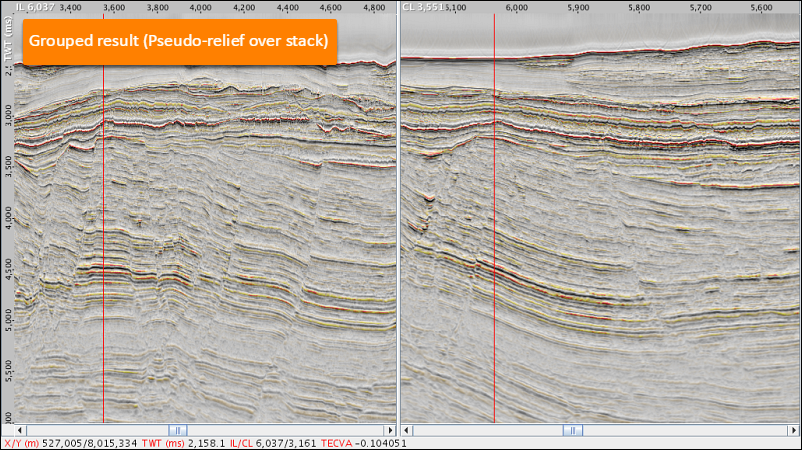

![](https://media.screensteps.com/image_assets/assets/001/763/343/original/7472e7e1-16fe-4976-86aa-d5c3cd56e388.png)
