Export 2D survey as simple XY TWT file
ARCGIS (and other softwares) import a simple XY TWT file. We can use the workflow below in Insight to create a horizon for XY values from the 2D surveys, export this to an XYT file for import into ARCGIS.
![](https://media.screensteps.com/image_assets/assets/003/303/409/original/1e55566f-3841-4c04-bdc1-8fe02bb1691c.png)

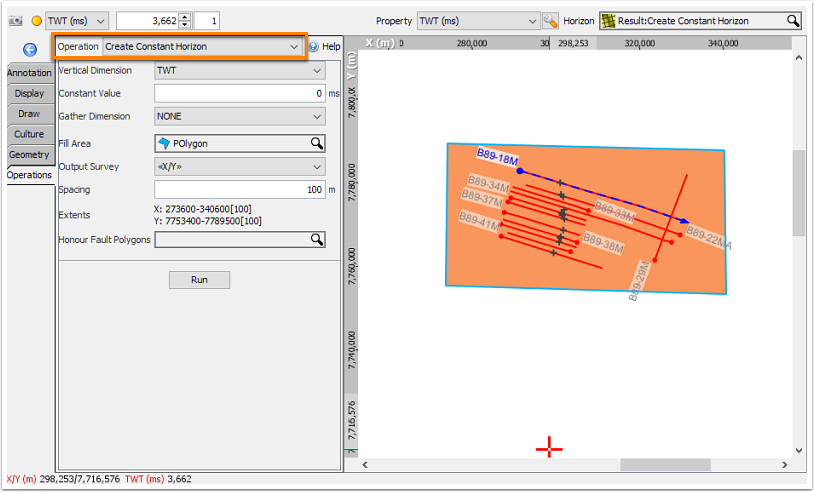

- Create a constant horizon covering all the 2D surveys you wish to transfer. (A 2D line set can be used to group the 2D lines).
![](https://media.screensteps.com/image_assets/assets/003/303/407/original/b23bc6ad-348b-4fd5-aab9-0b1e342c4e60.png)

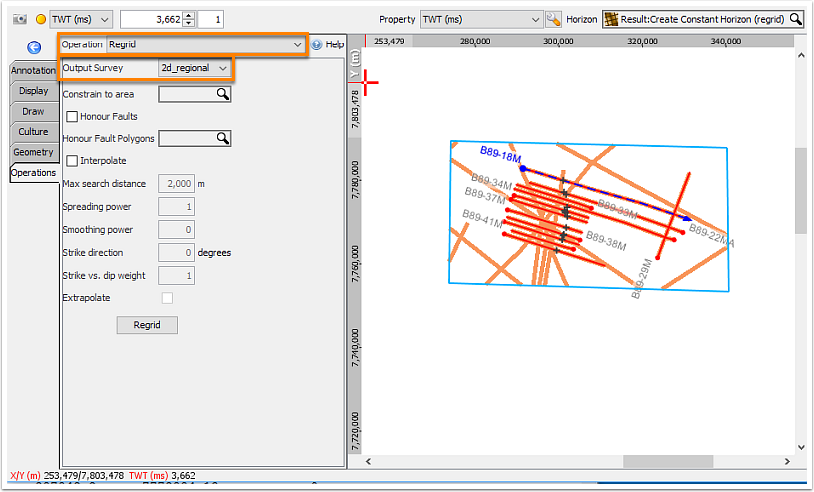

- Regrid this horizon to the 2D survey using the Regrid tool. Create a new horizon.
![](https://media.screensteps.com/image_assets/assets/003/303/408/original/59eec8b3-ec97-43f0-b48c-d7326248a5c4.png)

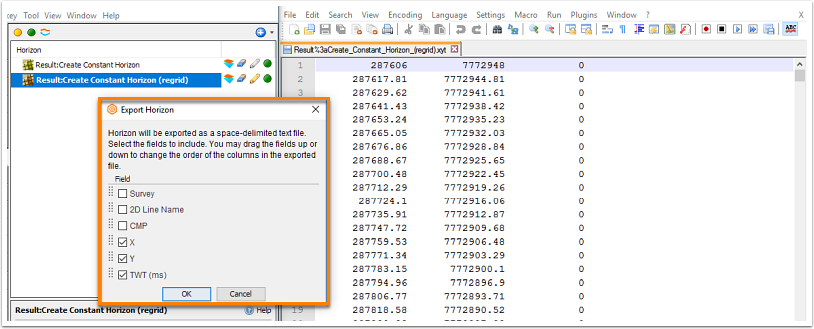

- Export this new horizon, select custom export and XY TWT. If needed, CMP and Line name can also be exported.
- A simple XYT file will be exported. Import into ARCGIS.
