How do I transfer depth-converted faults to Petrel?
Depth-converted faults can be transferred to Petrel, e.g. TWT faults as TVD, or TVD faults as TWT.
The process:
- Export the faults in the converted domain
- Import the faults back to Insight
- Transfer the imported faults to Petrel
Note: Ensure a velocity model is configured for depth conversion (see How it Works: Time-Depth Conversion). The Petrel link must be connected so that horizons and/or faults can be transferred (see Insight and Petrel Overview).

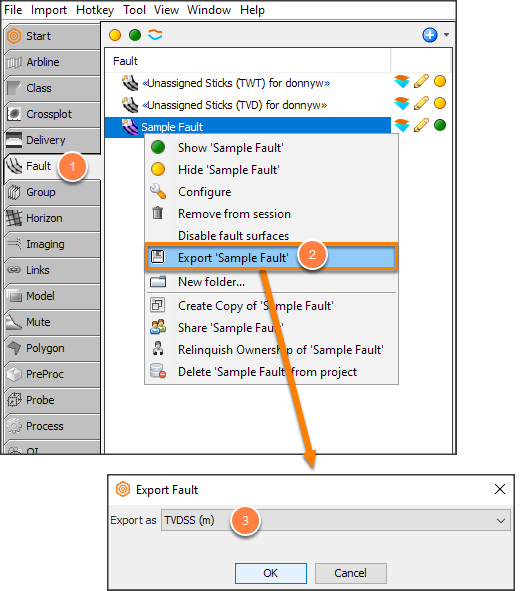

Exporting Faults to depth
![](https://media.screensteps.com/image_assets/assets/001/237/125/original/ee64b083-3839-4420-babb-7d1db0fcb7bc.png)
- Go to the Fault tab and right-click the fault.
- Select Export 'Fault'.
- In the Export as dropdown box, select TVDSS (m).
- Click OK.

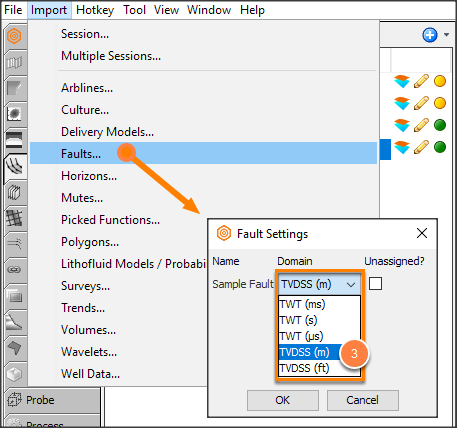

Importing Converted Faults
![](https://media.screensteps.com/image_assets/assets/001/237/130/original/d3dc65d8-3aeb-4075-9bd9-c6a238f85ef9.png)
- In the Import menu and select Faults....
- Select the exported fault file from the previous step
- Select the correct domain from the previous step, e.g. TVDSS (m)
- Click OK.
Send to Petrel
![](https://media.screensteps.com/image_assets/assets/001/237/137/original/d2f6bcf3-310b-405c-ac91-d80e9e7b105f.png)
- Go to the Fault tab and right-click on the imported fault.
- Select Send to Petrel.
