How to display data from two or more horizons simultaneously

To view multiple horizons, or multiple attributes of one horizon, there are a few options, depending on what you would like to achieve:

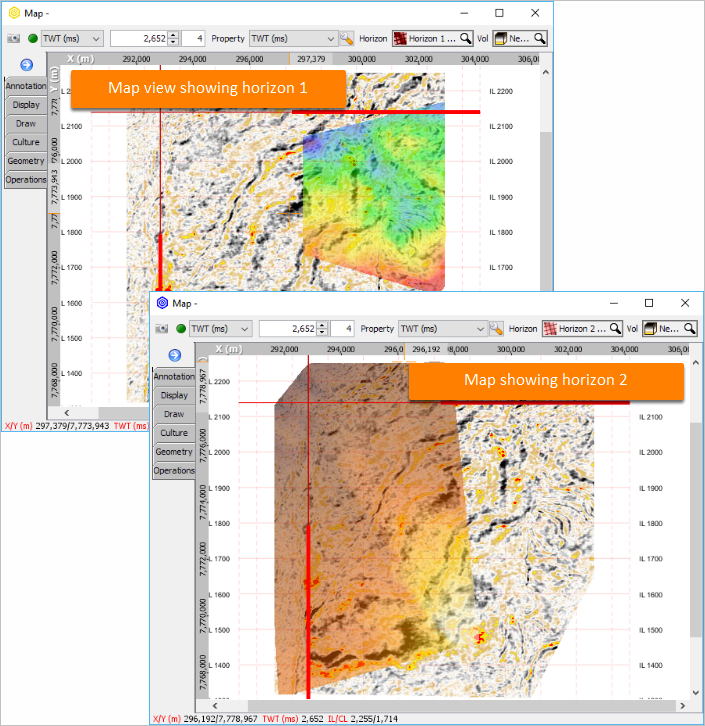

Use multiple map view

Open a second Map view to display each horizon (read about Volumes and horizons in Map View).

There are two approaches:

  • From the Control Panel, View menu, choose New Map View, OR
  • Right-click on an existing map view and choose “Duplicate this window

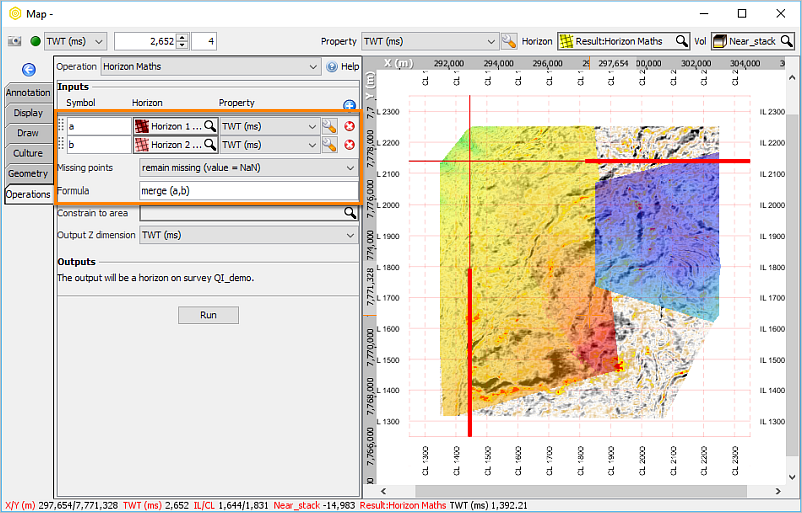

Merge using horizon maths

To combine two (or more) pieces of a horizon to a single surface:

  • Use Operations > Horizon Maths
  • Add each of the horizons to merge
  • Use the Formula: merge (a, b)

For more on horizon maths see Common horizon tasks in horizon maths.

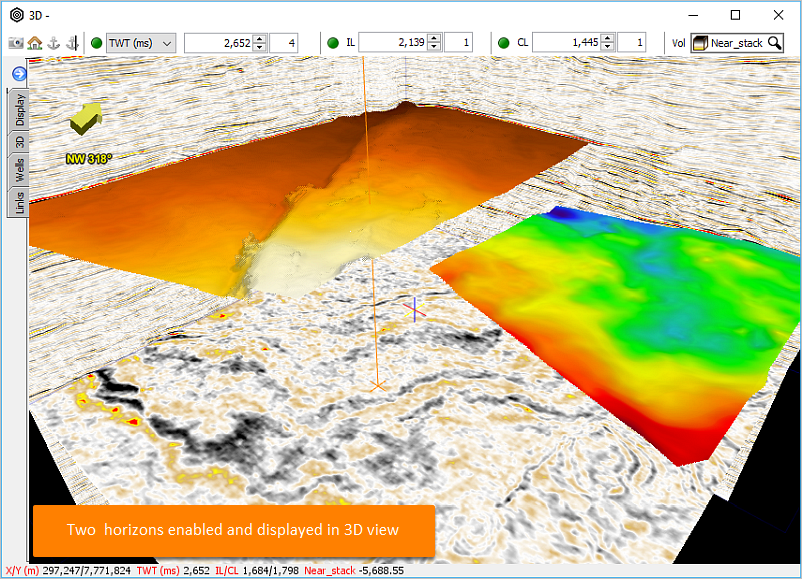

Using 3D view

  • Open the 3D view
  • In the Control Panel > Horizon tab, toggle the display of each horizon using the 'traffic light' icon
  • Enable the option in the Control Panel to display the horizon as a 3D surface, not the intersection (see Horizon Overview).

In the 3D view, different attributes can be displayed for horizon. To display multiple attributes for the same horizon, create a duplicate and display a different attribute for each.

  1. Duplicate your horizon (see Copying a Horizon).
  2. In the Control Panel, display the original and hide the copy.

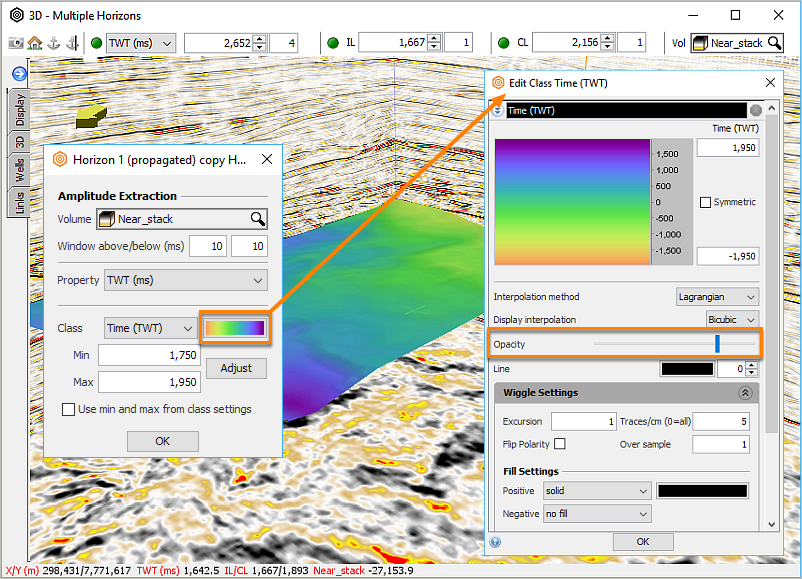

  3. Right-click on the original horizon in the 3D view and choose "Settings for Horizon".
    • Select the property to display.
    • Click the class and set the opacity.
  4. In the Control Panel, hide the original and show the copy.
  5. Right-click on the duplicate horizon in the 3D view and choose "Settings for Horizon".
    • Select the property to display.
  6. In the Control Panel, show the original horizon again.
  7. Both horizon attributes are now displayed together.

For more on viewing horizon attributes in 3D view, see Horizon options in 3D view.
