How do I create a "chair" display in the 3D view using two different volumes?

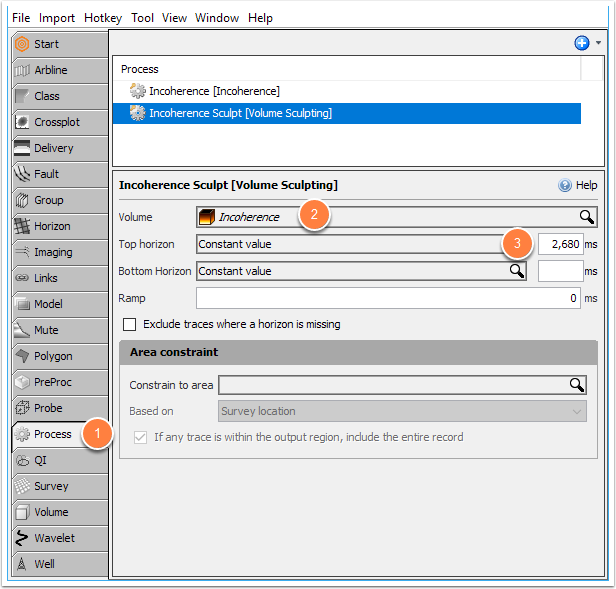

  1. Go to the Process tab and create a Volume Sculpt process (see Volume Sculpt process) e.g. "Incoherence sculpt".
  2. Use the incoherence (or other time-slice attribute) as input for the Volume field.
  3. Set the Top horizon as Constant value of the slice to display, e.g. TWT 2680.

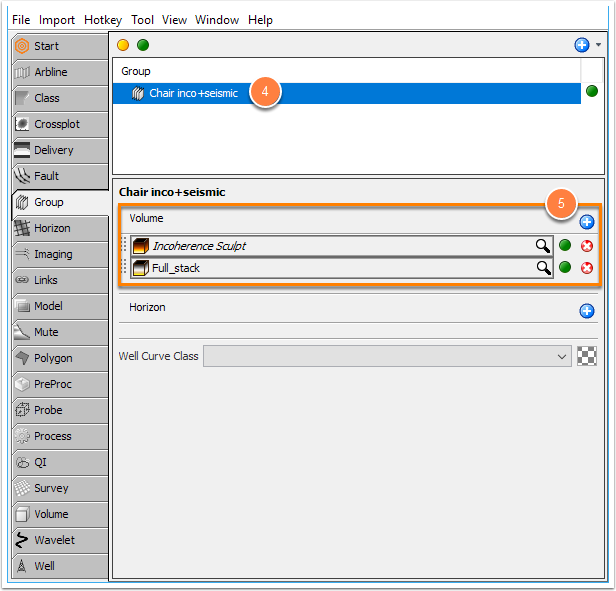

  1. Go to the Group tab and create a group e.g. "Chair inco+seismic".
  2. Click the blue "+" button and add the volumes for:
    • "Incoherence sculpt",
    • Seismic stack (or volume to display vertically).

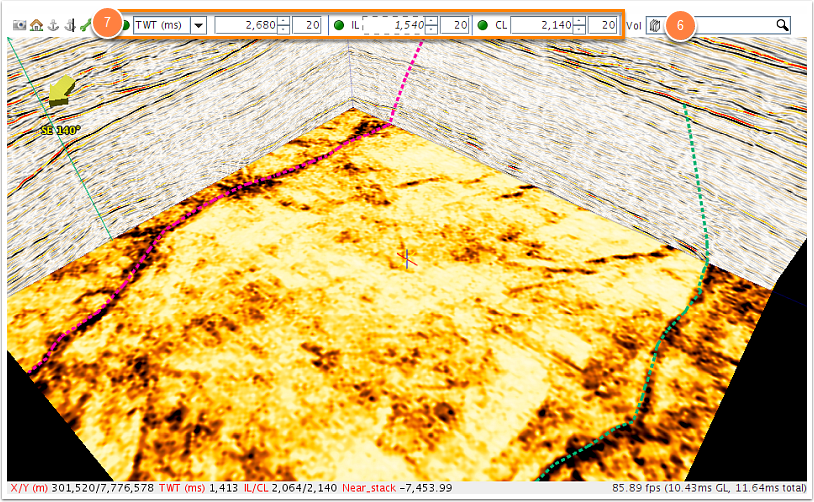

  1. In the 3D View,  select the group in the Vol search box.
  2. Turn on IL, CL and TWT (e.g. at TWT=2680).
