Defining 3D View Settings

Access the 3D View Settings by using the pop-out panel on the left edge of the 3D View.

Note: Click the blue arrow to show or hide the settings.

Display tab

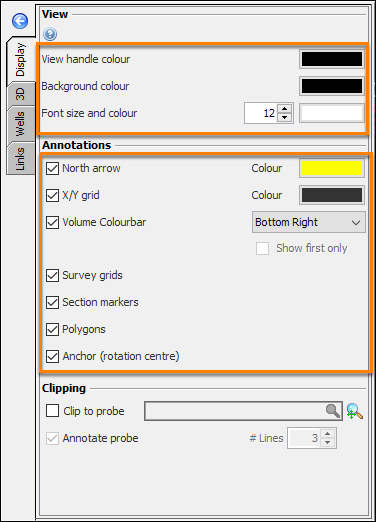

The Display tab defines settings that affect all aspects of the view:

View settings

Define 3D View settings
  • View handle colour: The colour of the window icon and the navigation markers in other views
  • Background colour: The background colour of the view
  • Font size and colour: Label text style and appearance

Annotations settings

  • North arrow: Display and choose the colour of the north arrow.
  • X/Y grid: Show and choose the colour of the X/Y coordinate grid.
  • Survey grids: Show survey grids. Choose colours for each survey in the Survey tab (see Defining Survey Details).
  • Section markers: Show markers where the inline, crossline and horizontal-slice intersect.
  • Polygons: Show or hide polygons. This is enabled by default. Clear this setting to hide all polygons in the view. Individual polygons can be shown or hidden in the Polygon tab (see Polygon Overview).
  • Anchor: Show the centre of rotation, or “Anchor”.
  • Contour lines/labels: Show contour lines and labels on the 3D view.

Colourbars settings

  • Horizons: Show colourbars for the displayed horizon properties.
  • Volume: Show colourbars for the current volume or group.
    • First only (group): Only show the colourbar of the first volume in the group.
  • Well Curves: Show colourbar of well curves.
  • Colourbars Annotation: See Configuring Colour Bar Annotations for more details.

Example

Clipping settings

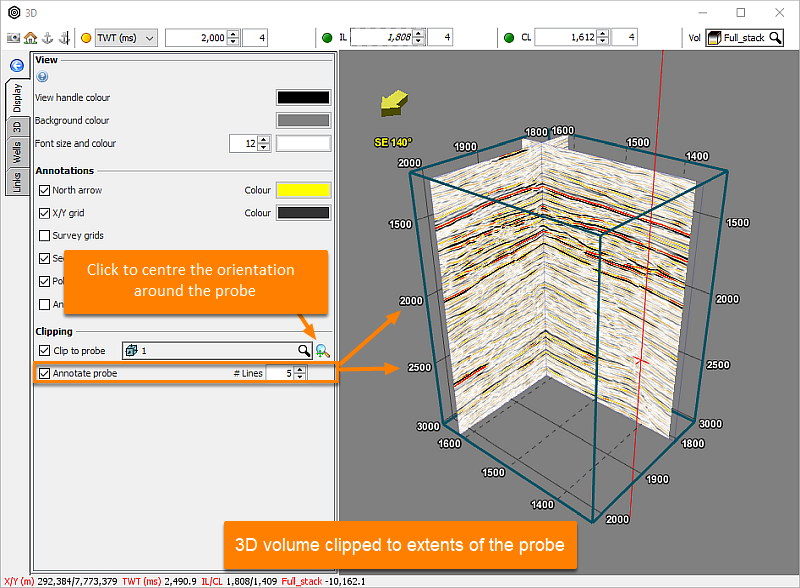

  • Clip to probe: Limit the displayed data to the selected probe.
  • Centre to View icon: After enabling clipping, click to re-orient the 3D view around the probe.
  • Annotate probe: Annotate the probe with coordinates to aid navigation.

3D tab

Scale settings

  • Z-scale: Apply a vertical stretch or squeeze to the data. Lower values squash data vertically, while larger values stretch the data.

Volume Visualisation

Volume Visualisation is available with the Explorationist Module.

With the 3D Volume Visualisation feature, you can view an entire probe of 3D data using selective opacity to highlight particular amplitudes. As a prerequisite, you must create a probe (see Creating a Probe). For more information, see Volume Visualisation.

3D Cursor

  • Style: Choose the style of the 3D crosshair - Cross, Star or Globe.
  • Size & thickness: Choose the crosshair size and thickness.
  • XY position: Include a crosshair indicating the cursor location at the surface

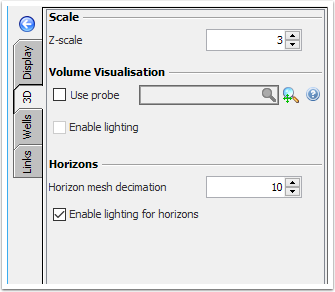

Horizon settings

  1. Horizon mesh decimation: Adjust the detail of horizon surfaces in 3D.
    • Lower values result in additional detail, but requires additional memory.
    • Increased decimation improves performance for large horizons.
    • Decreased decimation increases the quality, but may affect performance.
    • Note: Reduce the decimation setting if there is a disparity between the horizon and the seismic event on which it was picked.

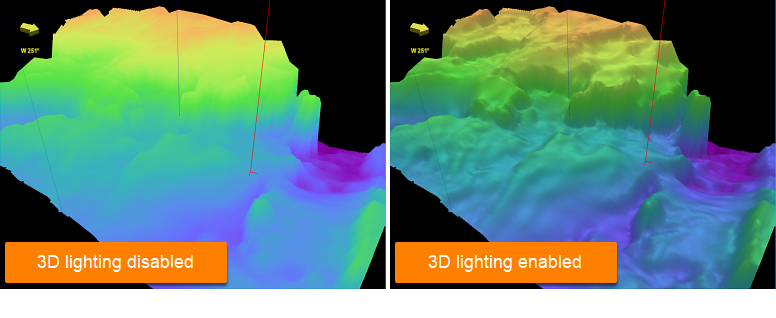

  2. Enable lighting for horizons: Apply lighting / shading to surfaces in the 3D View. Lighting and shading can affect the performance. If navigation is slow, try disabling this option.

Fault clipping settings

Max distance from IL:

  • Behind (m): Select to clip faults to a specified maximum distance from the back of the inline.
  • Front (m): Select to clip faults to a specified maximum distance from the front of the inline.

Max distance from CL:

  • Behind (m): Select to clip faults to a specified maximum distance from the back of the crossline.
  • Front (m): Select to clip faults to a specified maximum distance from the front of the crossline.

Debugging settings

Wells Tab

Note: See Well Display in Sections and 3D for more details on displaying wells.

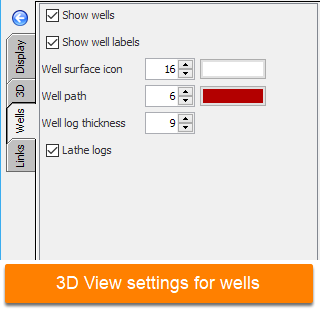

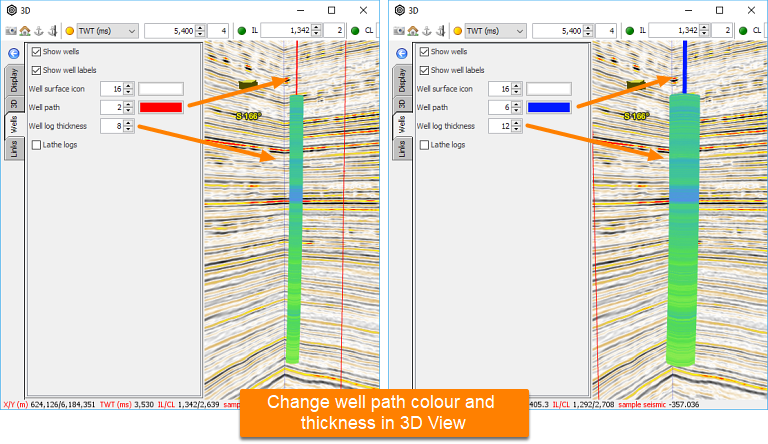

  1. Show wells: Show or hide all wells in the view.
    • Tip: To show or hide individual wells, use the traffic light in the Wells tab of the Control Panel.
  2. Show logs on path: Show values from log curves along the well path.
    • Set the width of the displayed log

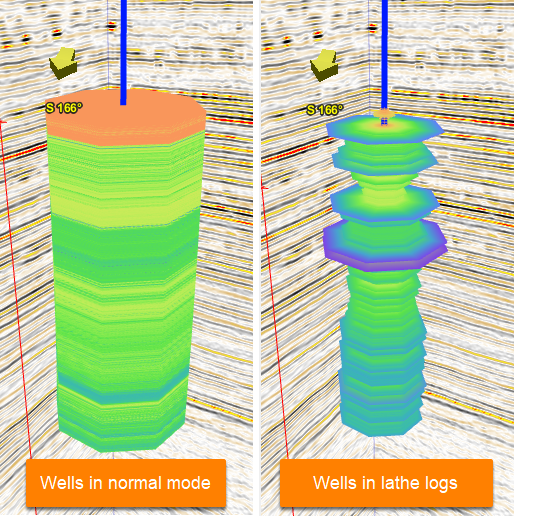

    • Lathe: Show wells as sculpted cylinders, with the diameter varying according to the values of the displayed log curve. To adjust proportional or inverse, select the appropriate option in the 3D view settings section of the class of the log being shown. See Classes and Colourbars Overview for more information.

Values Settings

Well Annotations Setting

Link section

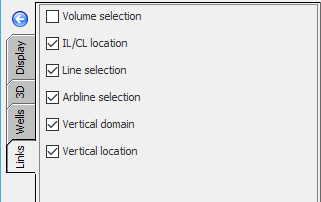

  • Enable check boxes to link the 3D view to other views.
  • Views with links enabled will share the same line, volume, domain or position. When one view updates, any linked views will change to follow.
  • See the Linking Multiple Views page.

Interpretation Tab

  1. Toggle interpretation/s for the current view and all other views that have the interpretation/s linked to the current view. Click the “Links” tab to see view that has interpretation/s linked.
  2. Click “Show All Interpretations” to select or deselect all of the below available options or alternatively select or deselect each option individually.
    • Show Horizons
    • Show Faults
    • Show Polygons
    • Show Probes
  3. Alternatively, hotkeys are available:
    • To toggle all types of interpretation: Ctrl+Shift+A
    • To toggle only horizons: Ctrl+Shift+H
    • To toggle only faults: Ctrl+Shift+F
    • To toggle only polygons: Ctrl+Shift+P
    • To toggle only probes: Ctrl+Shift+O
