Hotkeys

The Hotkey menu in the Control Panel displays a list of quick navigation items, along with their associated keyboard shortcuts. As you become more proficient with the software, you will probably rely less on this menu and opt to use the keyboard shortcuts instead.

Open the Hotkey menu

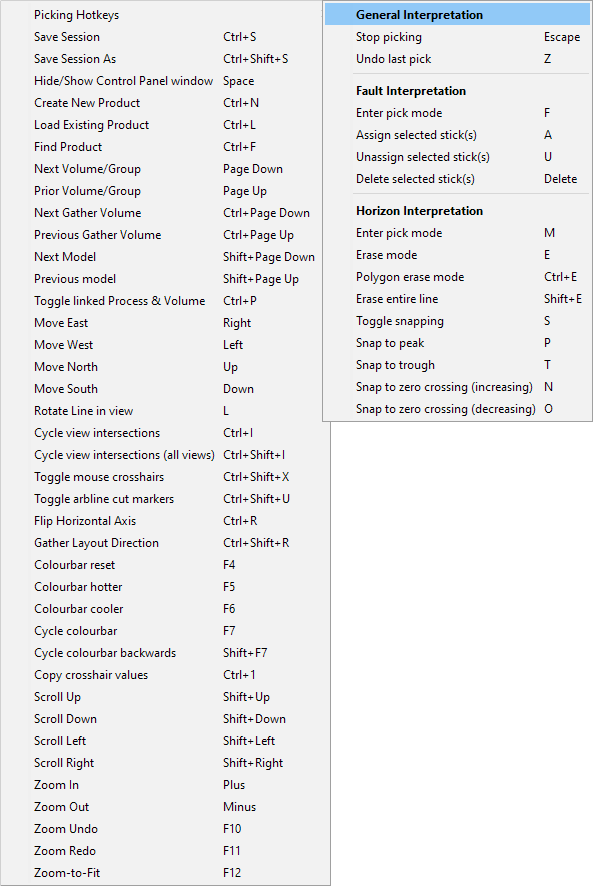

In the Control Panel, open the Hotkey menu. The list of hotkeys available in Insight will be displayed. The following describes each hotkey and its corresponding action.

  • Ctrl + S - Hold Ctrl and press S to quicksave the current session.
  • Ctrl + Shift + S - Hold Ctrl and Shift, and press S to save the session as a different session.
  • Space - Press the space bar to hide/display the Control Panel
  • Ctrl + N - To show the create item window.
  • Ctrl + Shift + N - To show the Create New Workflow window.
  • Ctrl + L - To display the load item window.
  • Ctrl + F - To search for items with matching names in a tab.
  • Page Down/Page Up - Press Page Down/Page Up to display the next/previous active volume or group.
  • Ctrl + Page Down/Ctrl + Page Up - Hold down Ctrl and press Page Down/Page Up to display the next/previous gather volume.
  • Shift + Page Down/Shift + Page Up - Hold down Shift and press Page Down/Page Up to display the next/previous active model.
  • Right/Left/Up/Down - Press the Right/Left/Up/Down arrow keys to move the location to the previous crossline, next crossline, next inline, or previous inline, respectively. The size of the movement is equal to the increment entered in the navigation bar. For 2D views, Right/Left now move the selected cmp, and Up/Down go the next 2D line north/south.
  • Ctrl + Up/Down - Hold Ctrl, and press Up/Down arrow keys to move to the previous and next vertical location in Map View and 3D View.
  • Shift + Up/Down/Left/Right - Hold Shift and press the up/down/left/right arrow keys to scroll up/down/left/right respectively.
  • L - To rotate line in Views.
  • Ctrl + Shift + I or Ctrl + I - Hold Ctrl (and Shift), and press I to cycle through view intersections.
  • Ctrl + Shift + X - Hold Ctrl and Shift, and press X to toggle the display of the green mouse crosshairs.
  • Ctrl + Shift + U - Hold Ctrl and Shift, and press U to toggle the display of the blue arbline bend markers in the arbline view.
  • Ctrl + P - To switch between process and the virtual volume.
  • Ctrl + R - Hold down Ctrl and press R to flip the display of a section view on its horizontal axis. With this hotkey, you can easily change the display of a section view from the direction of left-to-right to right-to-left, and vice versa in the 2D Line View, Arbline View, Attribute Map View and IL/CL View. In Well Correlation, the hotkey will reverse the order of wells displayed in the view.
  • F4 - Press F4 to reset the colourbar min/max range to its default range.
  • F5/F6 - Press F5 or F6 to adjust the colourbar range of the currently selected volume to make the image hotter (more contrast) or cooler (less contrast).
  • F7/Shift+F7 - Press F7 or Shift+F7 to cycle through the installed colourbars.
  • Ctrl + 1 - Hold Ctrl and press 1 to copy the crosshair values at the current location to the clipboard. Paste the content into Excel, Notepad, or any documentation software.
  • Plus/Minus - Press Plus(+)/Minus(-) to zoom in and out of views.
  • F10 - Press F10 to reset the view to the last manual zoom position/scale
  • F11 - Press F11 to reset the view to the last undone manual zoom position/scale

Picking hotkeys

Click on Picking Hotkeys in the Hotkey menu to open the list of hotkeys that can aid you when picking faults or horizons.

General Interpretation

  • Escape - Press Esc to disable the picking mode.
  • - Press Z to undo the latest pick.

Fault Interpretation

  • F - Press F to enter the fault picking mode.
  • A - Press A to assign fault stick(s).
  • - Press U to unassign the active fault stick(s).
  • Delete - Press Delete to remove the selected fault stick(s).

Horizon Interpretation

  • M - Press M to enter the horizon manual picking mode.
  • A - Press A to cycle through the pick modes.
  • E - Press E to enable the horizon manual erase mode.
  • Ctrl + E - Hold Ctrl and press E to enable the horizon polygon erase mode when you are in the horizon manual picking mode or erase mode.
  • Shift + E - Hold Shift and press E to erase the entire horizon line that you picked when you are in the horizon manual picking mode or erase mode.
  • S - Press S while in picking mode to enable/disable the snap feature when you are in the horizon manual picking mode.
  • P - Press P while in picking mode to change the event type to Positive Event to allow the picker to snap to peak.
  • T - Press T while in picking mode to change the event type to Negative Event to allow the picker to snap to trough.
  • N - Press N while in picking mode to change the event type to Zero Increasing to allow the picker to snap to zero crossing (increasing).
  • O - Press O while in picking mode to change the event type to Zero Decreasing to allow the picker to snap to zero crossing (decreasing).

Interpretation hotkeys

Use the following hotkeys to toggle on and off the display of active interpretations (horizons, fault segments, fault surfaces, polygons and probes) in section views (2D, IL/CL, IL/gather/CL, Arbline, Gather, 3D and Map view) without deactivating the interpretations in the Control Panel.

  • Ctrl+Shift+A - Toggle off and on the display of all active interpretations.
  • Ctrl+Shift+H - Toggle off and on the display of active horizons.
  • Ctrl+Shift+F - Toggle off and on the display of active fault segments and fault surface.
  • Ctrl+Shift+P - Toggle off and on the display of active polygons.
  • Ctrl+Shift+O - Toggle off and on the display of active probes.

Other common hotkeys

In addition to the hotkeys listed in the Hotkey menu, you can use other industry-common hotkeys within the software. The following is a list of these hotkeys and their corresponding actions:

  • Ctrl+W (Windows)/Cmd+W (Mac) - Hold down Ctrl and press W to close the active window in a Windows machine. Hold down Cmd and press W for the same action in a Mac.
  • Ctrl+Z - Hold down Ctrl and press Z to undo the horizon erase since you enabled the horizon eraser mode. Once you disable the eraser mode, you cannot undo the horizon erase.
  • Ctrl+Y- Hold down Ctrl and press Y to redo the horizon erase you just undid. Once you disable the eraser mode, you cannot redo the horizon erase.
  • Double-click - Double-click to stop manually adding horizon seeds and picking fault sticks, polygon, arbline, probe and horizon. You can also double-click to stop erasing the horizon.
  • Ctrl+Q - Hold down Ctrl and press Q to exit Insight.
  • H - Press H while in 3D View to view from directly above (N 0o). Alternatively, click on the Home icon in the 3D View navigation bar to reset the view.

Note: When you click on a text field in Insight, it selects all the text inside. Since Linux by default automatically copies any selected text to the selection clipboard, Insight is designed to preserve the existing selection clipboard instead of overwriting it. For Linux users who want to copy the text in a text field, double-click the desired text and use the middle-mouse button to paste.
