Defining Survey Details

2D Survey Details

2D Survey Details

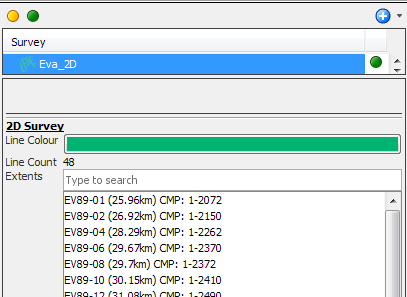

For a 2D survey, the Details Panel contains:

  • the colour of the survey lines, as seen in the 3D and Map views
  • the number of lines in the survey
  • a drop-down box showing the name, length and CMP extents of each line in the survey.

For more information, see Managing 2D Data.

3D Survey Details

3D Survey Details

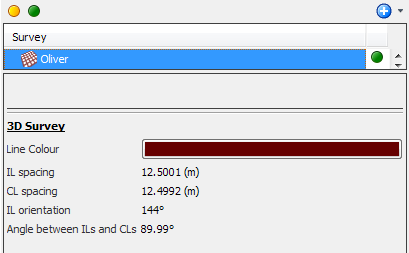

For a 3D survey, the Details Panel contains:

  • the colour of the grid lines, as seen in the 3D and Map View (customisable)
  • the distance between successive inlines and crosslines
  • the inline orientation (azimuth) measured clockwise from grid north
  • the angle between the inline and crossline directions (which should always be very close to 90 degrees).
