Displaying Horizontal Grid Lines (on sections)

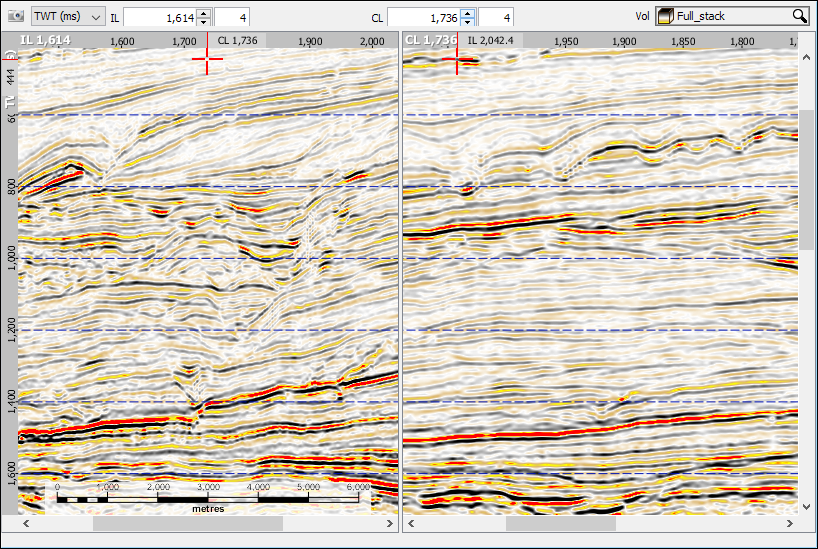

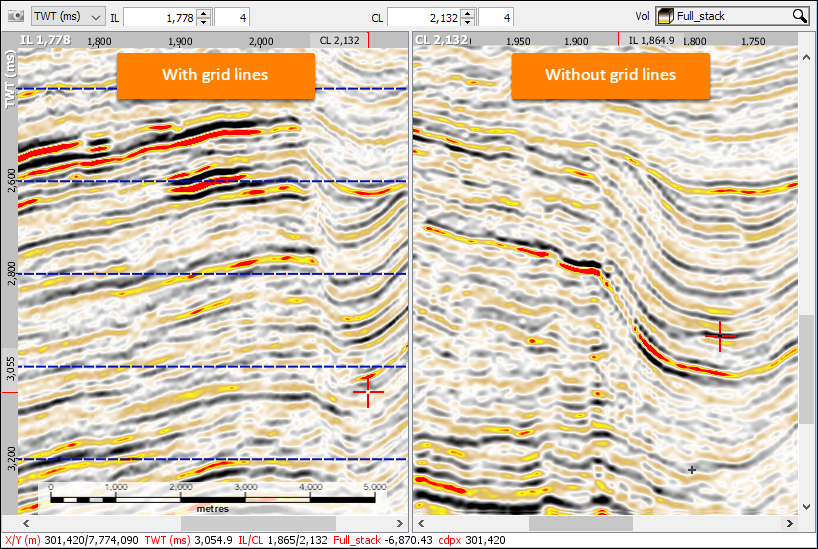

Horizontal grid lines are useful for easily viewing the vertical position within a volume. They are disabled by default. Lines can be displayed on a regular sequence or at specific values.

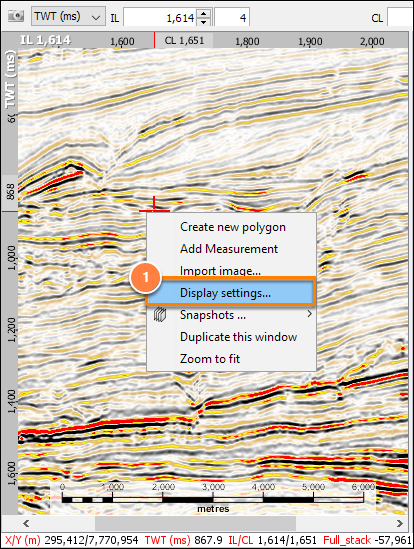

  1. Right click anywhere on the section view and select Display Settings > Configure...

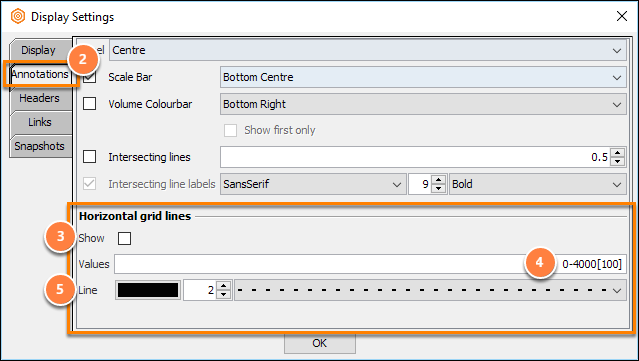

  1. In the Display Settings window, click the Annotations tab.
  2. Show: to display the horizontal grid line.
  3. Values : Draw grid lines at these values
    Enter a sequence as min-max[step], or
    b.   Enter specific values, separated by commas
  4. Line: Choose the Line colour, thickness and style.
