Defining Line Settings
When volumes and well curves are displayed as lines (wiggles), the following settings adjust the appearance of the lines.
Line Style Settings

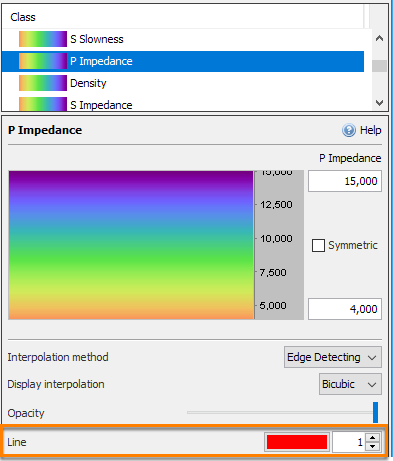

- In the Control Panel > Class tab, select the class to update.
- In the details panel, at Line:
- Click the filled box to choose the line colour,
- Choose the line thickness for the well curve.
Applied to Wells

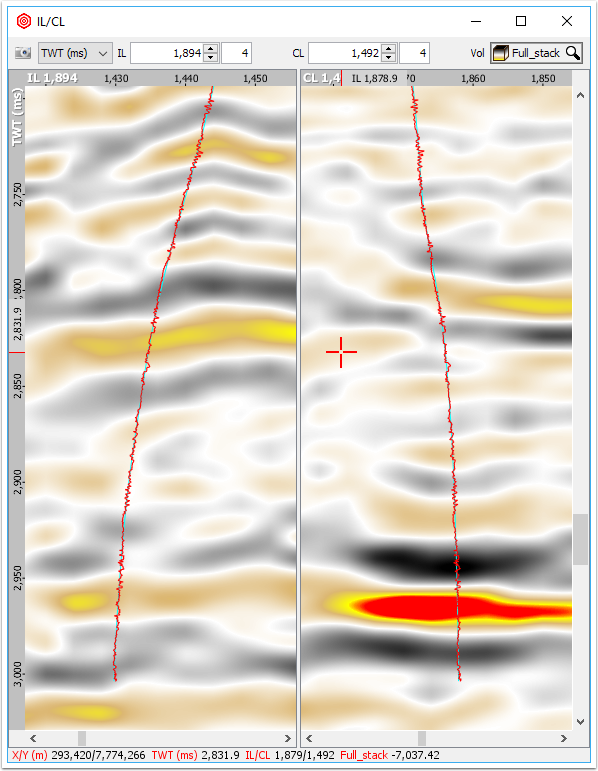

These settings affect the line style of well logs when “Show wiggle display” is selected.
In section views
In template views

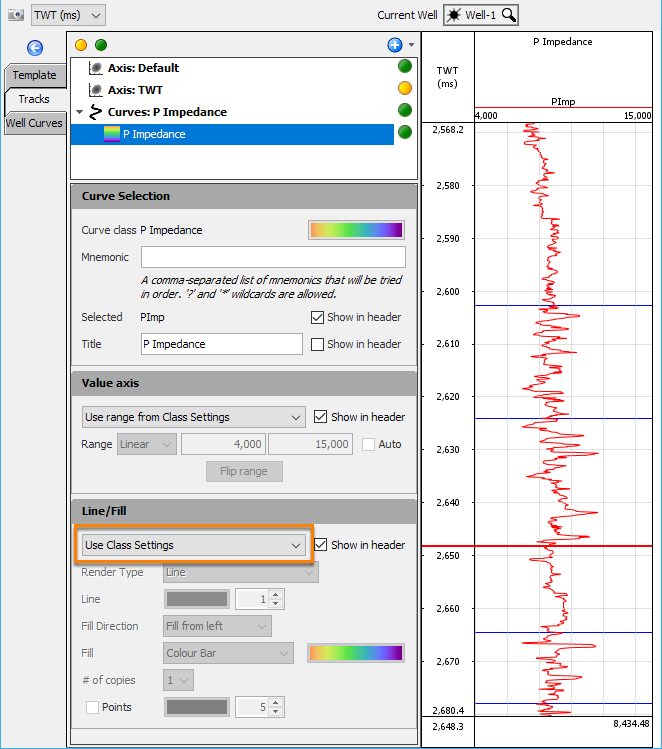

- “Use Class Settings” must be selected under the Line/Fill section. (see Curve Display Settings)
Applied to Volumes

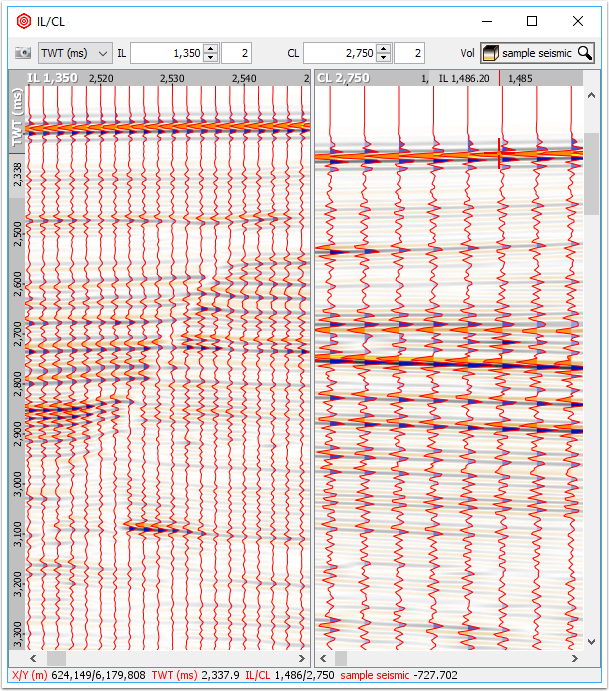

These settings affect the line style of wiggles for volumes displayed in section views (see also Defining Wiggle Settings).
