Crossover Fill Curves

Crossover fills can be created for any two well curves in a track. This curve type fills the difference between two curves.

This is typically used to present neutron porosity and density crossover, but can also be used to highlight differences between synthetics, fluid substitutions, etc



Read more about Curve Tracks.

Crossover fill

Use crossover fills to display the difference between two curves. These are typically used to display Neutron-Porosity / Density crossover.

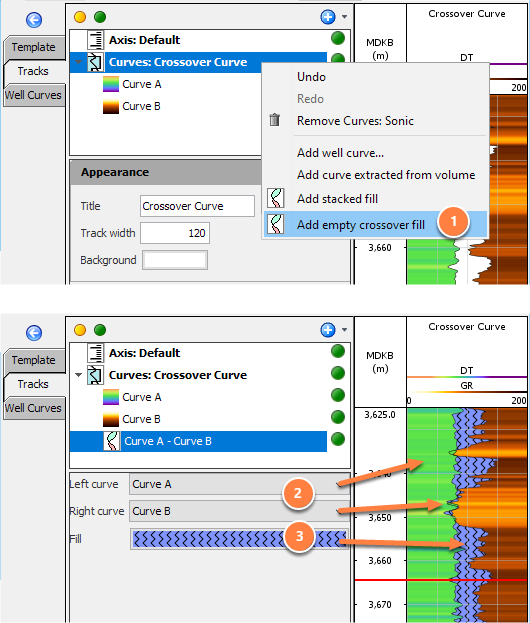

  1. Right click on a curve and select Add empty crossover fill.
  2. Select a curve from the dropdown menu for the Left and Right Curve.
  3. Pick a suitable fill colour and/or pattern.
