Pore Pressure Calculation Methods

The module offers two empirical methods for PPP, both in well and volume modes.

Fundamental theory

Conventional pore pressure analysis is based on Terzaghi’s (and Biot's) effective stress principle which states that total vertical stress (σv) (or overburden stress) is equal to the sum of the effective vertical stress (σe) and the formation pore pressure (PP) as follows:

σv = σe +  PP

where

σv = Total vertical stress

σe = Effective stress

PP = Formation pore pressure

(this assumes the Biot effective stress coefficient is 1 which is the usual assumption)

The basic steps in performing a conventional 1D pore pressure analysis are:

  1. Calculate total vertical stress (σv) from rock density.
  2. Estimate vertical effective stress (σe)from log measurements (DT or RES) or seismic (velocity).
  3. Pore pressure is then PP = σv - σe.
  4. Calibrate PP to credible information as it becomes available.

The pore pressure prediction module is utilised to estimate the effective stress (σe), using either Eaton's or Miller's methods, described next.

Eaton's equation

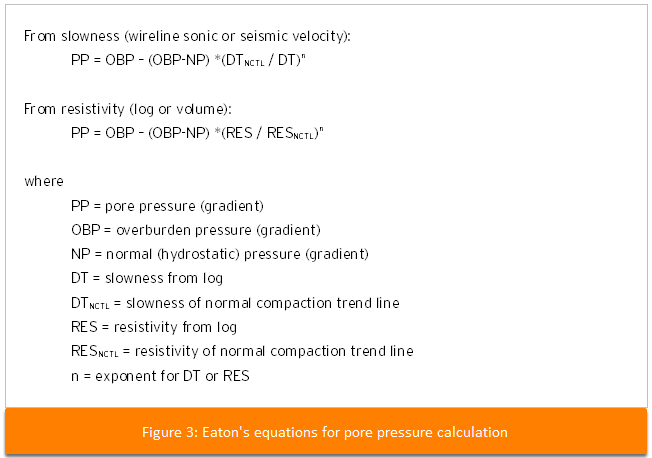

Eaton's method equations for PPP are described in Figure 3, and can be made from either velocity (slowness) or resistivity measurements, in the well or from data volumes:

  • Velocity — uses the observed shale compaction trend (OSCTL) at a well location, or seismic interval velocity from a volume.
  • Resistivity — uses the shale deep resistivity at well, or a resistivity volume.

Crucial to Eaton's method is defining the Normal Compaction Trend Line (NCTL), which is the “background” trend of velocity (as slowness) or resistivity, described in Normal Compaction Trend Lines.

Calibration of the Eaton parameters in the PPP module are described in Eaton's method.

Eaton's equation

Miller's equation

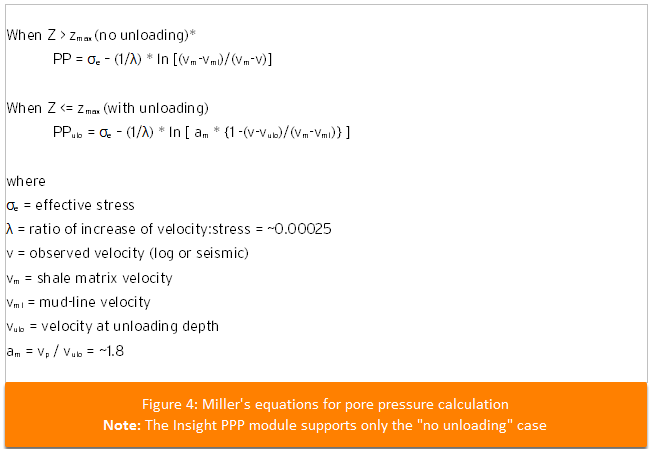

Miller's equation for PPP is described in Figure 4. Pore pressure gradient depends on the measured velocity, and whether depth is above or below the unloading depth. Below (deeper than) a given depth, unloading does not occur (and is the formula used in the PPP module). The physical relationships built into the Miller's (no unloading) equation are: at zero effective stress, the velocity is simply the fluid velocity, and as the effective stress approaches infinity, the velocity approaches the matrix velocity.

Calibration of Miller's method parameters in the PPP module are described in Miller's Method.

Miller's equation

Fracture gradient

The fracture pressure is that at which the formation has tensile failure. Thus, the predicted fracture gradient shows the maximum possible mud weight without inducing mud loss into the formation.

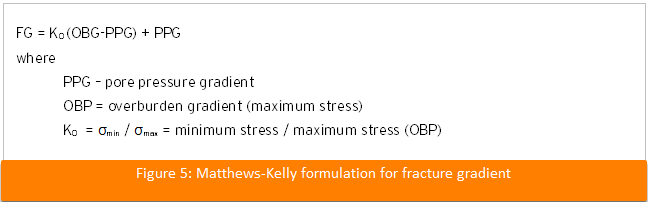

The Matthews-Kelly formulation is implemented, defined in Figure 5. You must provide an effective stress ratio (K0), which can be calibrated from leak-off tests (LOTs), described in Leak Off Test (LOT) and fracture gradient example.

Fracture gradient
