Defining and Configuring 3D Surveys

After making changes to a survey, reload the session to allow the new survey to take effect. ALL items that were loaded/created in the previous survey will also be updated once the session is reloaded.

Configure survey

Configure survey

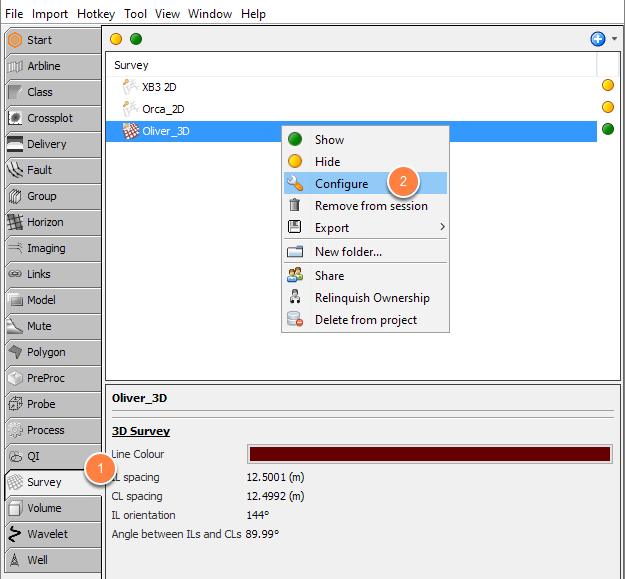

  1. In the Control Panel, open the Survey tab.
  2. Double-click the survey that you wish to configure.
    Alternatively, right-click the survey and click
    Configure 'Survey'. The Survey Configuration window will be displayed.

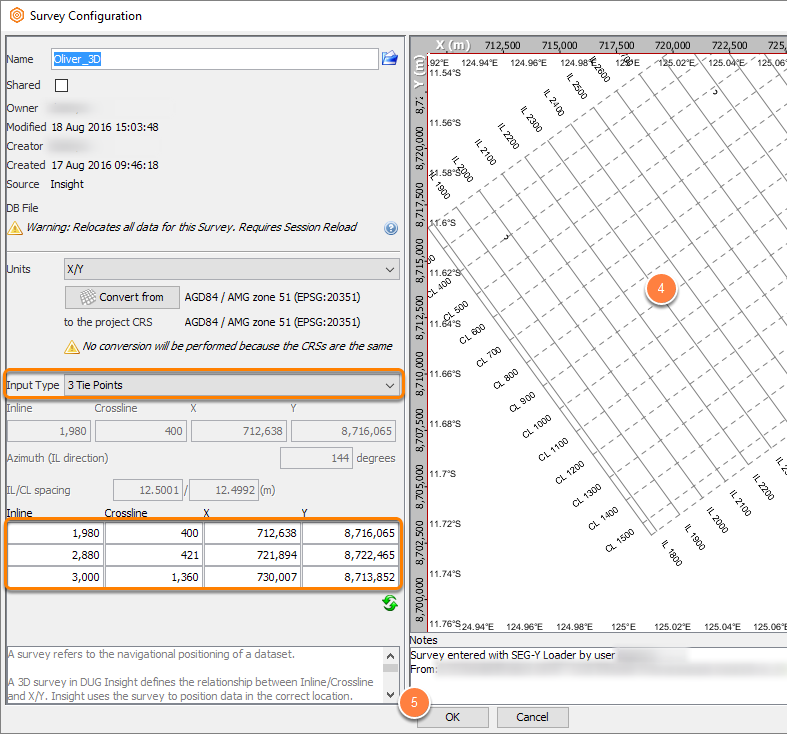

  1. Here, you can change the location of the survey by specifying new inputs:
    • Origin & Bin Size Definition — Input the coordinates of an origin point in Inline, Crossline, X and Y. Then, define the Azimuth (IL direction), the direction in which the IL increases and the spacing of the IL/CL. The survey will be generated by projecting out from the origin in the direction and spacing specified.
    • 3 Tie Points — Alternatively, you can also define 3 tie points in IL, CL, X and Y. The survey will be generated from the relationship between IL/CL and X/Y, and large enough to cover all three tie points.
  2. Check for any warnings or errors, and QC the survey from the view panel on the right.
  3. Click OK to update the survey.

Replace survey with a new survey file

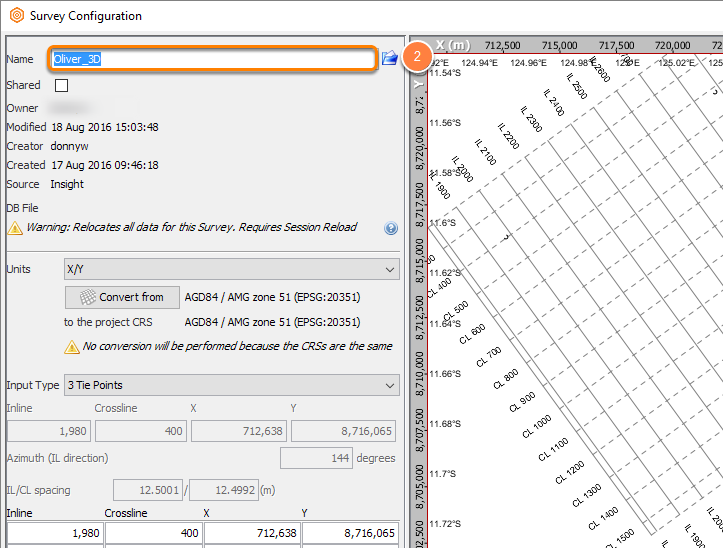

  1. Type a new name for the survey in the Name field.
  2. Click on the Select File icon to the right of Name field.
  3. Select the new 3D survey file that you want to use and click Open.
  4. Click OK to replace the survey.

Update survey?

Update survey?

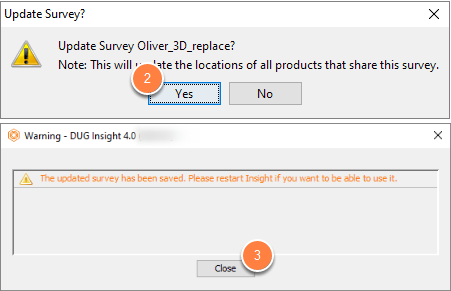

  1. Once you have made changes to a survey, the Update Survey? window will appear to warn you that it will update the locations of all products that share the survey.
  2. Click Yes to proceed with the update.
  3. Click Close to return to the Survey panel.

Note: The current session has to be reloaded to allow changes in the new survey to take effect. All other items that were based on the old survey will also be relocated to the new survey once the session is saved and reloaded.

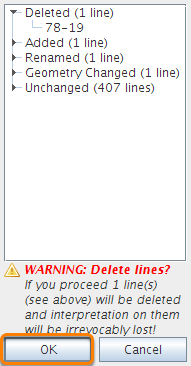

If changing the survey would result in deleted lines, a separate warning dialog will appear to show you a breakdown of the affected lines.

Click OK to proceed, or click Cancel to cancel redefining the survey.
