Exporting Basic Well Information

The basic information of a well can be exported to a CSV text file (.txt). This file will contain:

  • Well name and number
  • UWI/API number
  • Display name
  • Land or marine indicator
  • Kelly Bushing height
  • Water depth
  • Creator username and time
  • Owner username and last modification time
  • Surface location X and Y
  • Well status
  • Max measured depth.

Export basic well info

Export basic well info
  1. In the Control Panel, open the Well tab.
  2. In the Well tree, select the well that you want to export the basic well info. You can also select multiple wells.

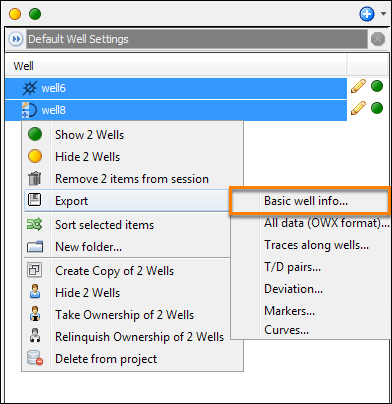

  3. Right-click the selected well(s), click Export and select Basic well info.

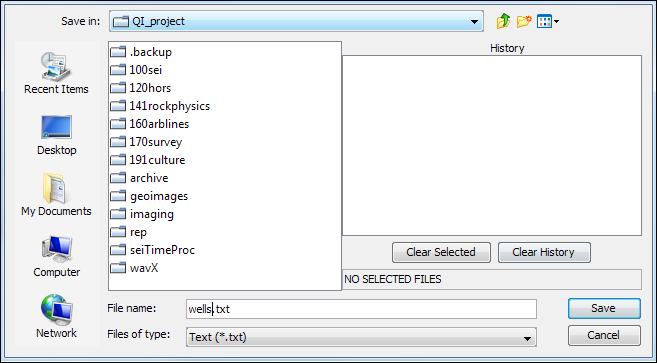

  1. Browse to the directory where you want to save the basic well info and type a file name.
  2. Click Save.

The first row of the text file contains the headers listed above, while the subsequent rows will display the information for each well.
