Importing a Fault

You can import fault in the VoxelGeo XYZ, GeoQuest IESX or in the DUG fault (.dufault) format. In the GeoQuest IESX format, you can load multiple faults from a single file.

.dufault format

The .dufault file consists a single X/Y/Z point per line, separated by whitespace, with a blank line indicating a new fault stick. The following example shows a .dufault file with three fault sticks, each stick having three, four, and four points, respectively.

626281  6178923  2604
626269  6178885  2706
626210  6178697  2833

626110  6179213  2602
626051  6179027  2860
626009  6178894  3027
625971  6178772  3113

625918  6179436  2590
625858  6179245  2987
625792  6179036  3194
625732  6178847  3373
Click to copy

VoxelGeo XYZ format

VoxelGeo XYZ format

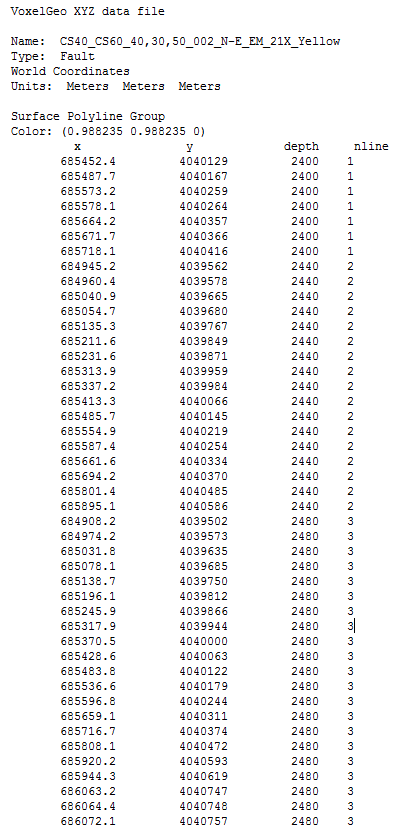

The example above shows a VoxelGeo XYZ data file.

GeoQuest IESX format

GeoQuest IESX format

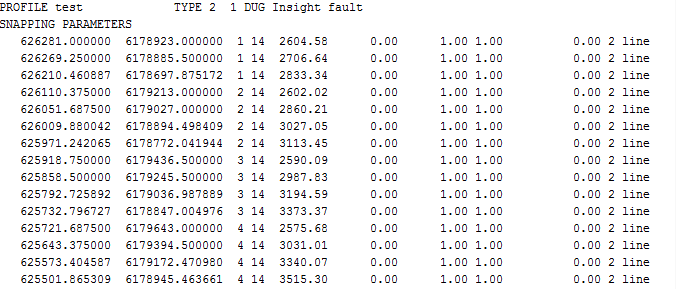

The example above shows a GeoQuest IESX data file.

  • Columns 4 and 6-10 are not used.
  • The specification for a data row from a fault file:
  • A data row must be at least 47 characters long.
  • X [0-16] = UTMX
  • Y [16-32] = UTMY
  • Z [38-47] = Vertical (TWT or TVD)
  • I [32-39] = Stick Index
    • If stick index contains a space character, only the characters [32-35) are used.

Note: The index ranges, e.g. [16-32) are zero based. The first value is inclusive, the last is exclusive.

Import a fault

Import a fault
  1. If you want to load multiple fault sticks in GeoQuest IESX format, you should first select all the fault sticks that you want to use and export them to a single file.
  2. In the Control Panel, select the Import menu.
  3. Click Faults.
  4. Select the fault file to be imported and click Open.
  5. Define the time/depth domain for the fault. If you are loading multiple faults, you can select a time/depth domain for all the faults at the same time by setting the domain at << Set all >>.
  6. Click OK to import the faults.

Import unassigned fault sticks

Import unassigned fault sticks
  1. In the Control Panel, select the Import menu.
  2. Click Faults.
  3. Select the fault file containing the unassigned fault sticks that you want to import and click Open. The Fault Settings window will be displayed.
  4. At Domain, select time or depth domain to import the unassigned fault sticks on the selected domain.
  5. Select the Unassigned? check box to indicate the fault sticks as unassigned.
    Note: If you want to assign the fault sticks upon loading, clear this check box.
  6. Click OK to import the unassigned fault sticks.
