Viewing a Volume Group

You can display data of the multiple volumes that you have grouped in the different views.

View volume group data

View volume group data
  1. In the Control Panel, go to the View menu, and open the IL/Gather/CL View.
  2. At the Vol box in the navigation bar, select the volume group to display.

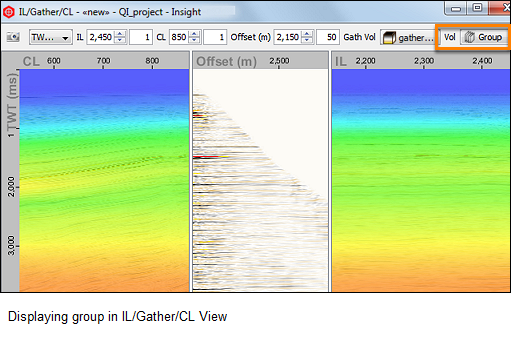

The example shows an IL/Gather/CL View. In the left and right panels, the velocity is displayed with the full stack and gather volumes. In the middle panel, the section view of the gather volume is displayed.

View volume group data using arbline

A group of 2D and 3D volumes can be created to view multiple volume datasets using an arbline.

For more information, see Viewing Data Along Arbline.
