Analysing (3D SEG-Y)

The next step is where the SEG-Y Loader uses the header mappings to analyse the SEG-Y data and detect problems. For loading 3D data, this step will discover the inline/crossline values in the data, the shape and geographical location of the data (if calculating tie points from X/Y headers) and any invalid data.

Analyse the trace headers

Analyse the trace headers

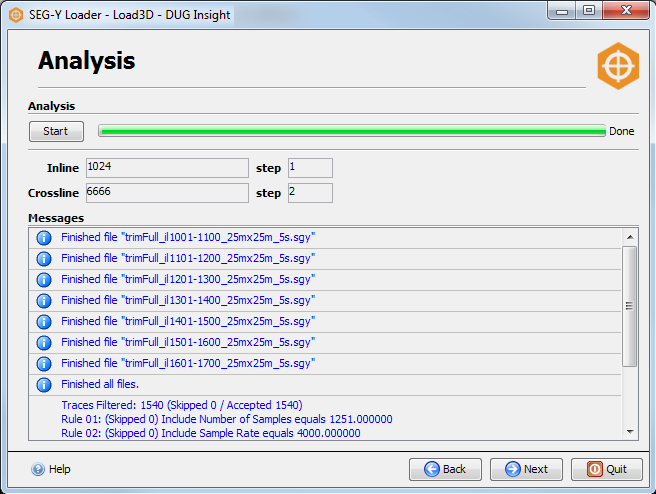

  1. In the Analysis pane, click Start. During the analysis, the SEG-Y Loader will parse the data file to determine spatial extents, increments, and the possible tie points for conversion between inline/crossline and X/Y coordinates (if you have selected the option for the SEG-Y Loader to calculate the tie points from X/Y headers). If a gather dimension was specified, its range will also be calculated. At this stage, the SEG-Y Loader will analyse the entire dataset.
  2. Warnings may be displayed at the bottom of the page during analysis. If you find that your header mappings are incorrect, click Back to return to the Specify the byte locations of headers window. You should go through the analysis results to ensure everything is as expected.
  3. If no errors are reported, click Next to move to the next step (see Defining a Survey).

Genuine offer of assistance

DUG understands that importing SEG-Y data can be a confusing task.

Whether you are using a trial version or a fully-paid licence, we will help you to import your data to Insight so that you will get the maximum out of your data.

For more information, contact support at support@dugeo.com.
