Exporting a Survey

You can export a 2D/3D survey to a file. The exported survey file contains only the 2D line or IL/CL geometry, depending on the survey type.

For more information on exporting 2D data, see Export / Import of 2D Data.

Export a survey

Export a survey
  1. In the Control Panel, open the Survey tab.
  2. Select the 2D or 3D survey that you want to export.

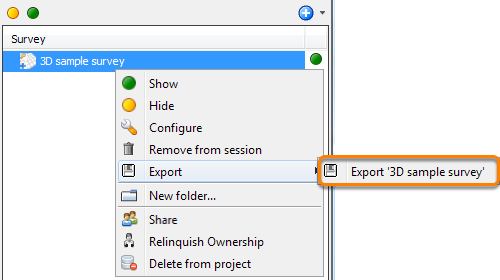

  3. Right-click, select Export and Export 'Survey'.
  4. Type the file name and click Save.

The survey will be exported to a .survey extension file format.
