Trace Padding

Description Pad the top and/or bottom of traces using zeros, mirroring or simple extrapolation.
Module(s) Image Gather Processing, Explorationist
Requirements Volume
Related Trace Shift, NaN Removal
Works with 2D, Stacks, Gathers


This process pads the top and/or bottom of traces in a TWT volume with zeros, simple extrapolation or mirrored samples. If ramping is selected, a linear ramp is applied across the padded values.

Create a Trace Padding process

Create a Trace Padding process
  1. In the Process tab, click the Add icon and select New Process.
  2. Select Trace Padding and type a name for the process.

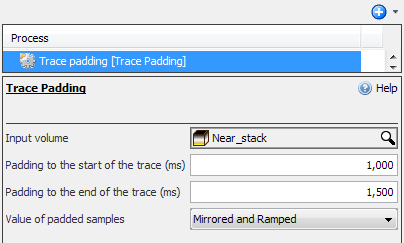

  3. In the Details Panel, select the Volume to pad.
    • Pad at the start/end of the trace (ms) — Positive values will add additional samples; negative values will trim samples. Pad times will be rounded to the nearest sample.
    • Value of padded samples — Zeroes, mirrored, mirrored then ramped, or Pad start with first sample value and pad end with last sample value.

Example

Example

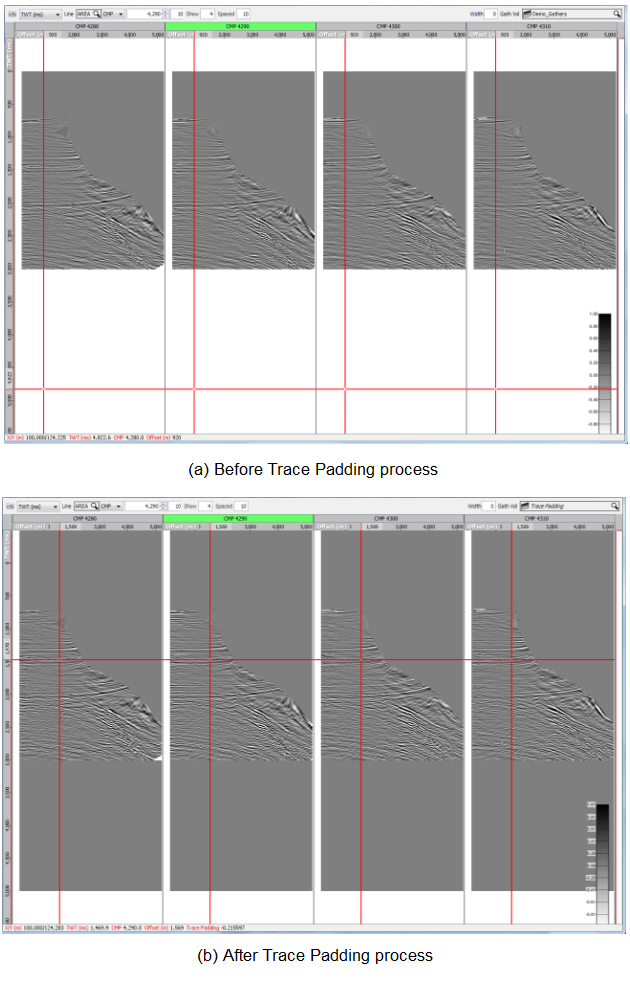

In this example, we have added padding of zeros. It is possible to add mirrored and/or ramped padding instead.
