Reports

Insight's Reports provide summary information of everything in an Insight project

Reports include:

Project Explorer

  • An interface to interactively inspect a project

Report exports

  • Create tab-separated text (.tsv) files listing the project contents for review in a spreadsheet or scripting tools



How to start Reports

  1. Launch the Data Manager (see Launching the Data Manager).
    • Note: The project selected in the DUG Insight Launcher will be the project used for reporting.

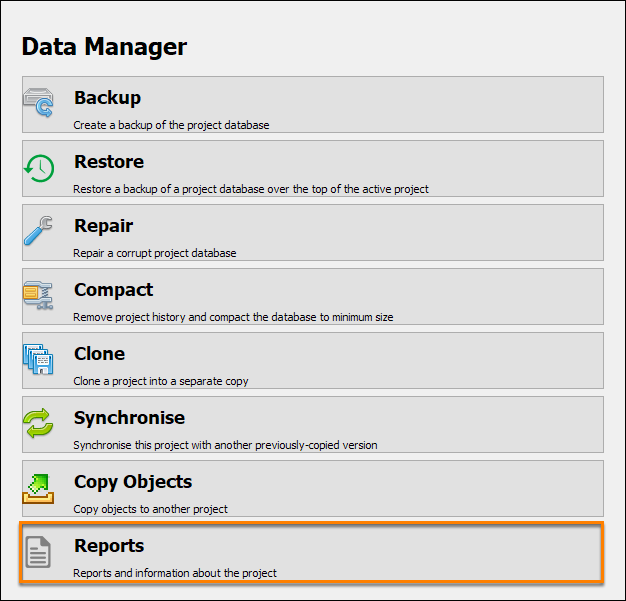

  2. In the Data Manager window, click Reports.

Project Explorer

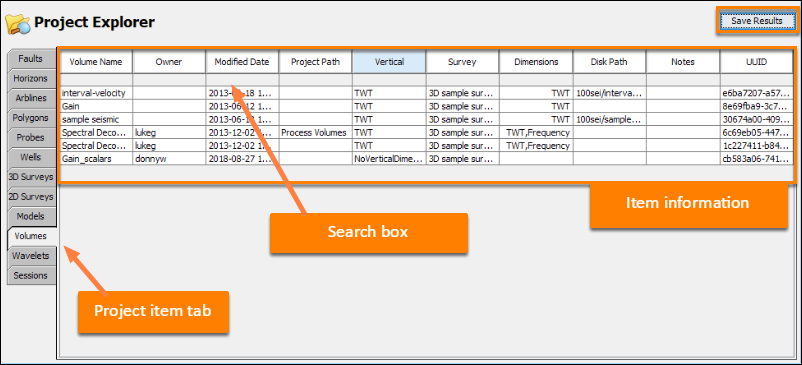

The Project Explorer is a simple interface for browsing the contents of a project. It contains:

  • Separate tabs for each type of item in the project
  • Detailed information in a table format
  • Quick search / row filtering by entering values below the header row
  • Save results button

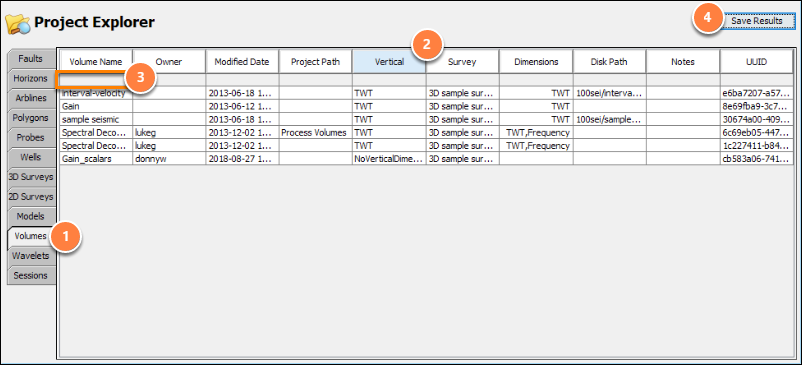

  1. Select an item tab and the table updates to show the project items
  2. Click a header to sort by a specific column
  3. Enter text to filter the table to items with matching values in the column

Save results

  1. Click Save Results and select the folder location and file name for the text file.
  2. The text report includes the information shown in the table.

Project Summaries

Project summaries are a complete set of text files describing the contents of a project. Use project summaries to create tab-delimited files for review in a spreadsheet, or for analysis using scripts and other tools.

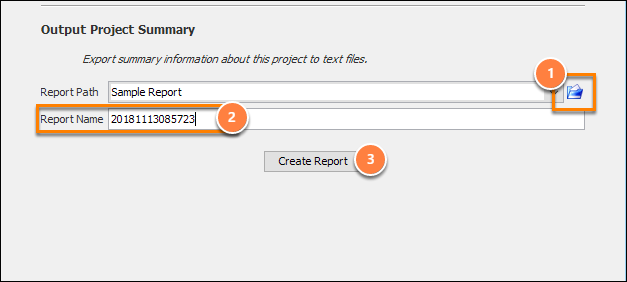

  1. Choose the directory for the text files by clicking the blue folder icon.
    • Note: Click the down arrow to select previously created folder.
  2. Type a report name or use the default date and time format.
  3. Click Create Report.
  4. The reporting tool creates individual tab-separated text files containing details for each type of item in the project.

Sample Report

Well Name    Modified Date	Well Status                    Land/Marine    KB Height    Water Depth    Curve Sets    T-D Sets    Deviation Sets    Marker
Well-1       13-12-13 13:03	Oil and gas (plugged)          Marine         22.4         220            1             1           1                 1
Well-5       13-12-13 12:59	Gas (plugged)                  Marine         22           185.8          3             1           2                 1
Well-4       07-11-16 11:40	Gas and condensate (plugged)   Marine         25           162.3          2             1           2                 1
Well-6       13-12-13 12:59	Gas (show)                     Marine         26.36        170.8          1             1           2                 1
Well-9       13-12-13 13:03	Gas and condensate             Marine         22.2         220            1             1           2                 1
Well-10      13-12-13 13:03	Gas                            Marine         22.2         178.43         1             1           1                 1
Well-11      13-12-13 13:03	Oil and gas                    Marine         22.2         165            1             1           2                 1
Well-3       12-12-13 13:32	Unspecified                    Marine         0            0              0             0           1                 0
Well-2       12-12-13 13:32	Unspecified                    Marine         0            0              0             0           1                 0
Well-7       12-12-13 13:34	Gas and condensate (plugged)   Marine         25           162.3          1             1           1                 1
