Defining Volumetrics Parameters

In the single case, the volume (shaded) is calculated between a single top surface and a flat contact.

In the dual case, the volume (shaded) is calculated between a pair of surfaces defining the top and base of the structure, and a flat contact.

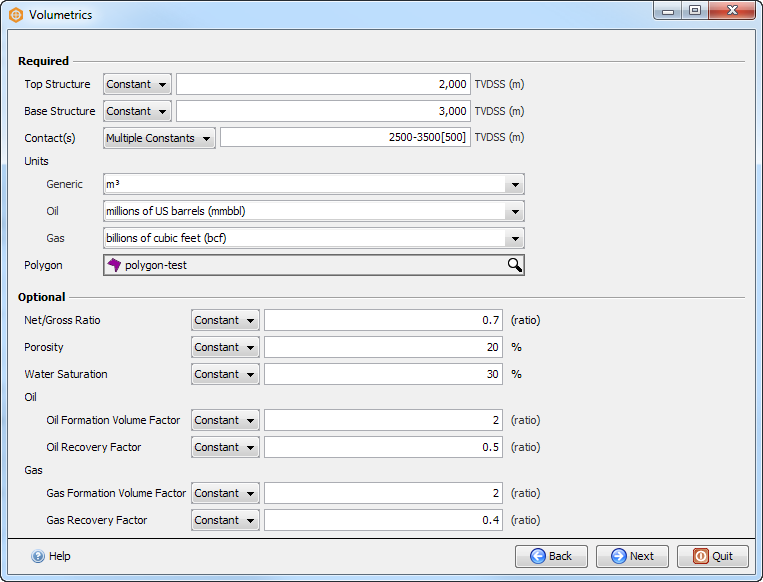

Parameters

Parameters

Required parameters

  1. Top Structure: Choose a horizon or specify a constant to define the top of the structure. If a horizon is chosen, an offset distance (TVD) can be added. The horizon must be in depth or convertible to depth (see How it Works (Time-Depth Conversion)).
  2. Base Structure: ("Dual" case only). Choose a horizon or specify a constant to define the base of the structure.
  3. Contact(s): Choose Horizon, Constant, or Multiple Constants to define the contact.
    • Horizon: a horizon with optional depth offset
    • Constant: a depth value (TVDSS)
    • Multiple Constants: one or more depth values (separated by commas) AND/OR a sequence (as min-max[step] format).
      • e.g. 1000.0 - 1400.0 [100.0]
      • e.g. 1100, 1275, 1300 - 1400 [50]

Note: All volumes are from the top of the structure to contacts. Subtract the lesser volume from the larger volume to get the volume between contacts.

  1. Units: Choose the units to use for the output, including oil and/or gas volumes if Oil and/or Gas ratios are provided.
  2. Polygon: Constrain the area of calculation with a map polygon. If a polygon is not selected, the area is defined by the entire horizon.
    • A polygon must be selected if constants are used for the structure and contact(s).

Note: Volumetrics calculates the Gross Rock Volume (GRV) unless the following parameters are specified.

Optional parameters

For the remaining parameters, provide a single constant or a horizon to define a spatially varying value. Porosity and Water Saturation are interpreted as ratios (0 to 1) or as percentages (0 to 100) if any value in the horizon is greater that 1.

  • Provide Net/Gross Ratio to calculate net volume. Valid range: 0.0 to 1.0.
  • Provide Porosity to calculate pore volume. Valid range: 0.0 to 1.0 (or 0.0 to 100.0).
  • Provide Water Saturation to calculate hydrocarbon volume. Valid range: 0.0 to 1.0 (or 0.0 to 100.0).
  • Provide Oil Formation Volume Factor (also called shrinkage factor), to calculate stock tank oil originally/initially in place (STOOIP/STOIIP). This parameter converts the volume of oil at reservoir conditions to the volume at the surface. The value varies depending on the fluid and the temperature and pressure of the reservoir and the surface. Typical values are from 1 to 1.7.
  • Provide Oil Recovery Factor to calculate estimated ultimate recovery (EUR) volume. Valid range: 0.0 to 1.0.
  • Provide Gas Formation Volume Factor, to calculate original gas in place (OGIP/GIIP). This parameter converts the volume of gas in the reservoir into the volume at the surface. The value varies depending on the fluid and the temperature and pressure of the reservoir and the surface. Typical values are below 0.1.
  • Provide Gas Recovery Factor to calculate estimated ultimate recovery (EUR) volume. Valid range: 0.0 to 1.0.

Note: If a horizon is provided as the structure or contact, the horizons must all be consistent. For example, if a horizon has an undefined location, each horizon provided must have the same undefined location within the polygon (if selected).

Click Next to perform the volumetrics calculation.



Results

Results

Values in the volumetric results table are rounded to 5 significant figures.

The results are calculated using the equations below:

  • Contact Area = The total area of the contact as it intersects with the volume.
  • Net Volume = GRV x Net/Gross Ratio
  • Pore Volume = Net Volume x Porosity
  • Hydrocarbon Volume = Pore Volume x (1 – Water Saturation)
  • STOOIP/STOIIP = Hydrocarbon Volume / Oil Formation Volume Factor
  • Recoverable Oil Volume = STOIIP x Oil Recovery Factor
  • OGIP = Hydrocarbon Volume / Gas Formation Volume Factor
  • Recoverable Gas Volume = OGIP x Gas Recovery Factor

Copy the content to the clipboard by right-clicking anywhere in the window and selecting Copy.

Click Finish to close the Volumetrics wizard.
