Volume Integration

Description Integrate data using a running sum or Simpson's rule algorithm.
Module(s) Explorationist, Pore Pressure Prediction
Requirements Volume
Related Volume Maths, Volume Maths (Simple)
Works with 2D, Stacks, Gathers


The Volume integration process combines sequential samples of a trace to create a new value. There are 2 methods available within the process:

  • Integration: This method uses Simpson’s rule to approximate the area under the curve.
  • Running Sum: This method adds one sample to the next, cumulatively, as it goes down the trace. For example, for an input trace where every sample = 1, the output samples will be 1, 2, 3, 4, 5, ...

Create a volume integration process

Create a volume integration process
  1. In the Control Panel, open the Process tab.
  2. At the tab header, click the Add icon and select New Process.

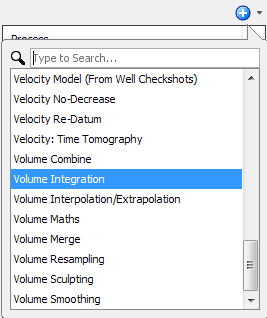

  3. Double-click Volume Integration.
  4. Type a name for the process and click OK.

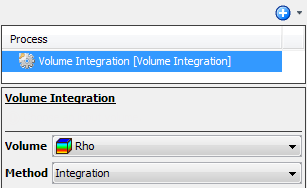

  1. In the Details Panel, select the volume for the integration process at Volume. In this example, a density volume is selected.
  2. Select the Method for the integration process:
    • Running Sum — This method adds one sample to the next, cumulatively, as it goes down the trace. For example, for an input trace where every sample = 1, the output samples will be 1, 2, 3, 4, 5, ...
    • Integration — This method uses Simpson's rule to approximate the area under the curve.

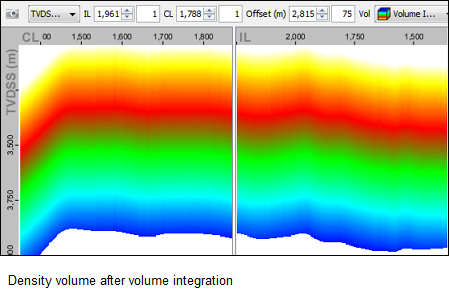

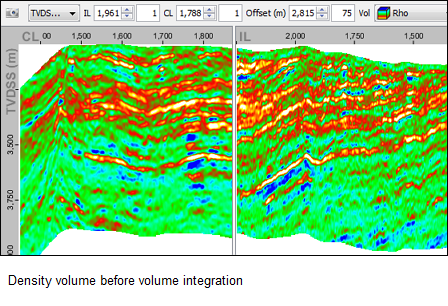

As a result of this process, a new volume is available in the Volume tab. The following examples show a density volume before and after the Volume Integration process.
