Exporting Well Deviations

You can export the deviation data of a well or multiple wells.

Export deviations

Export deviations
  1. In the Control Panel, open the Well tab.
  2. In the wells tree, select the well that you want to export the deviations. You can also select multiple wells to export the deviations.

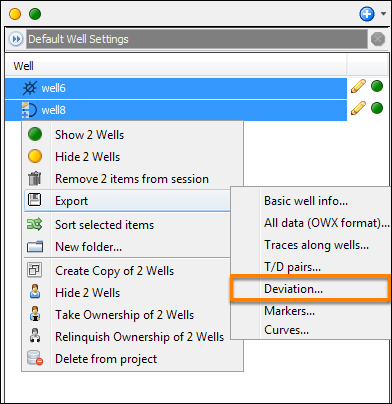

  3. Right-click the selected well(s), click Export and select Deviation.

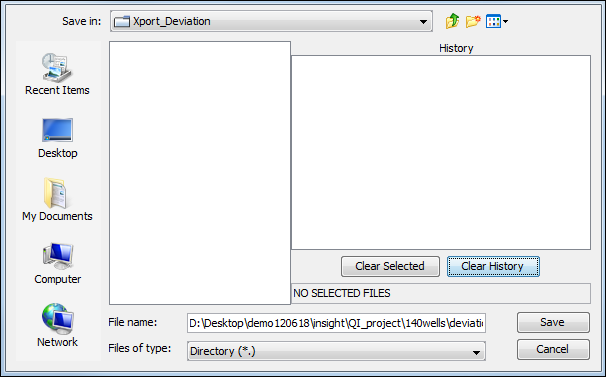

  1. Browse to the directory where you want to save the deviation data of a well and type a file name. For exporting deviations of multiple wells, select a folder where you want to save the deviations.
  2. Click Save.

Note: When exporting deviations, only the active set of deviations that have been defined for the selected wells will be exported (see Selecting Default Well Components).
