Exporting Well Checkshots

You can export the time/depth chart (checkshots) of a well or multiple wells.

Export checkshots

Export checkshots
  1. In the Control Panel, open the Well tab.
  2. In the wells tree, select the well that you want to export the checkshots. You can also select multiple wells to export the checkshots.

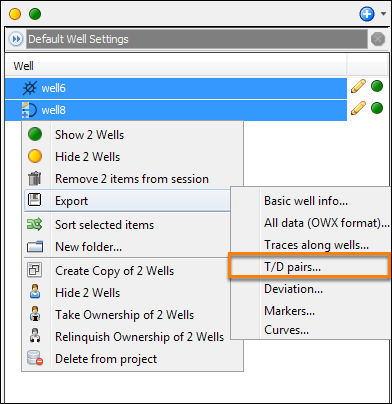

  3. Right-click the selected well(s), click Export and select T/D pairs.

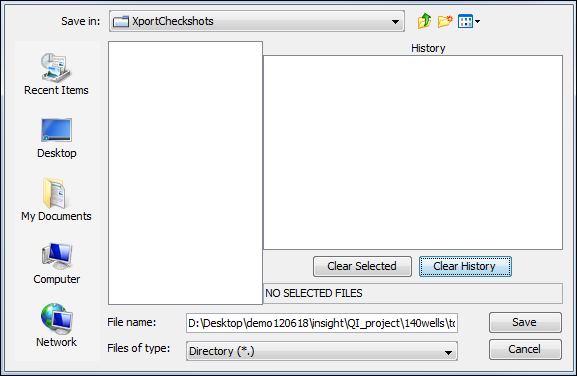

  1. Browse to the directory where you want to save the checkshots of a well and type a file name.
  2. For exporting checkshots of multiple wells, select a folder where you want to save the checkshots. See the above example.
  3. Click Save.

Note: When exporting checkshots, only the active set of checkshots that have been defined for the selected wells will be exported (see Selecting Default Well Components).
