Optimising Volumes for Performance

You can optimise the sub-volumes of the inline and crossline sections as well as the horizontal slices (time or depth) of a 3D volume. An optimised volume uses extra disk space to boost performance. A volume loaded with default settings (16-bit main volume, all three 8-bit optimised volumes) is about 150% the size of a 32-bit input SEG-Y.

If you use the SEG-Y Loader to import new SEG-Y data, it will include optimised volumes by default (see Output and Writing Options (3D SEG-Y)). However, if the optimised volumes are not loaded to Insight or you have volumes loaded from older versions of the SEG-Y Loader, you can still optimise 3D volumes within Insight.

Some volumes require large numbers of calculations to display – usually complicated process volumes (see Processes Overview) or volumes with phase-rotation applied (see Manual Mistie Corrections). To boost the performance of these volumes, consider exporting the volume (see Exporting a Copy).

Optimise sub-volumes

Optimise sub-volumes
  1. In the Control Panel, open the Volume tab.
  2. Select a volume which you want to create optimised slices.

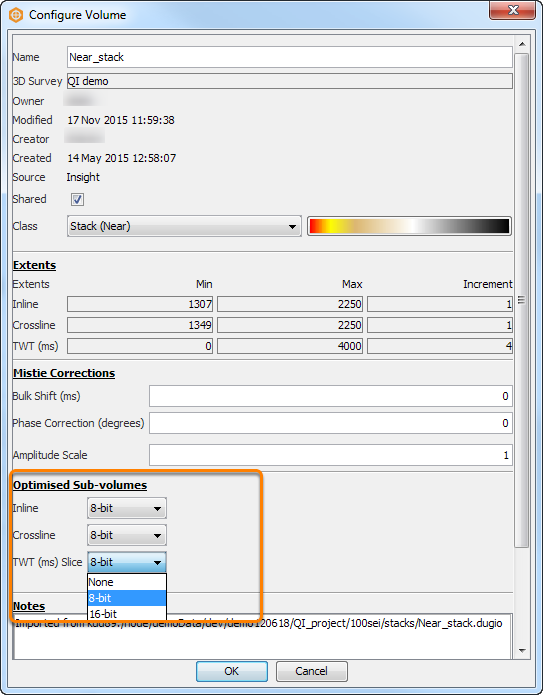

  3. Double-click the selected volume or right-click the volume and click Configure 'Volume'. The Configure Volume window will be displayed.
  4. Go to the Sub-volumes section. You can select 8- or 16-bit optimised volumes for inline, crossline and/or time/depth slice.
  5. Click OK.

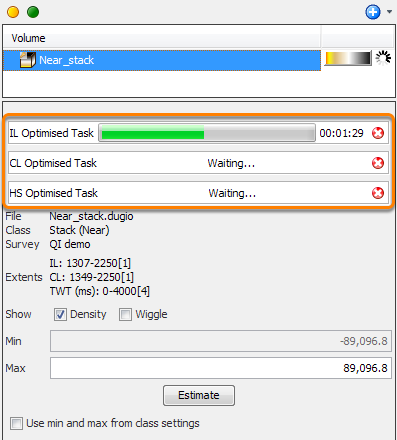

The operation to create optimised sub-volumes will continue in the background. See image below.

When the operation is completed, the sub-volumes will show as 8-/16-bit in the Configure Volume window.

Using optimised volumes massively boosts the speed of viewing your data. In most cases, 8-bit is the best choice. When processing or exporting data, the original volume is used.
