Context Menu (Fault)

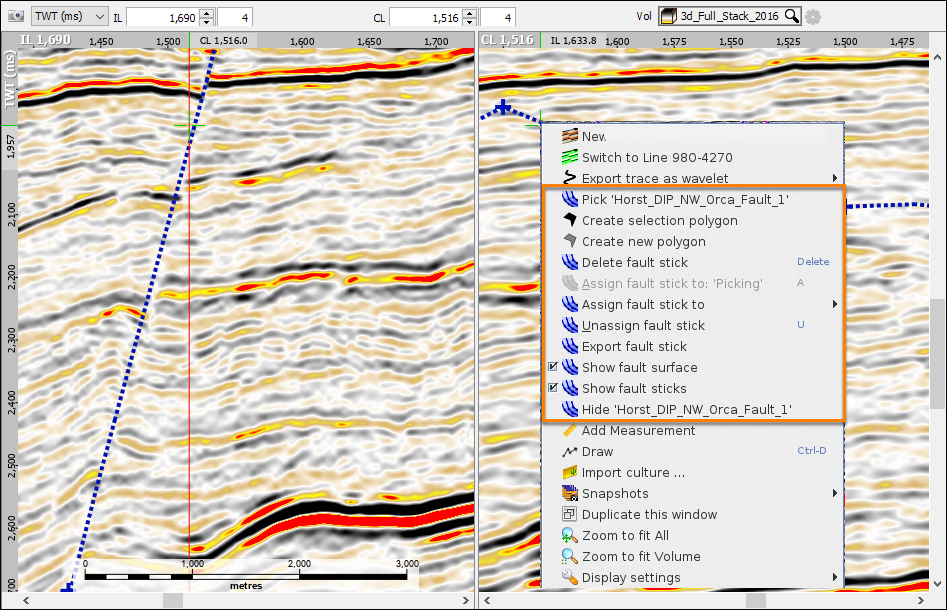

In a View, right-click on a fault stick or the tessellated fault surface to open the context menu.

• Pick/Stop Picking "fault": Click this to start/stop picking on the existing fault sticks.
• Create selection polygon: Refer to Bulk Selection Using Polygon.
• Create new polygon: Refer to Creating a Polygon.
• Delete fault stick: Click this to delete a fault stick.
• Delete intersecting fault stick: Click this to delete an intersecting fault stick.
• Assign fault stick to: Assign selected fault stick to another fault stick.
• Unassign fault stick: Unassign the selected fault stick.
• Export fault stick: Export fault stick as TWT (ms) or TVDSS (m).
• Show fault surface: Click this to display/hide the fault surface in the views. By default, the computed surface of the fault is displayed in the views. This is the same as selecting/clearing the Show computed surface check box in the Details Panel in the Fault tab.
• Show fault sticks : Click this to display/hide the fault sticks in the section and 3D views. By default, the fault sticks on slices are shown in the views. This is the same as selecting/clearing the Show fault sticks check box in the Details Panel in the Fault tab.
• Hide "fault": Click this to hide the fault from being displayed in the views.
