Editing SEG-Y headers

Before exporting a volume to SEG-Y, Insight allows you to edit all three SEG-Y text headers to match to your standard format: EBCDIC (text) Header; the per file Binary Header; and the per-Trace Header. If you already have a template, you can also load it to use.

  1. In the Control Panel, open the Volume tab.
  2. Select a volume that you want to export.

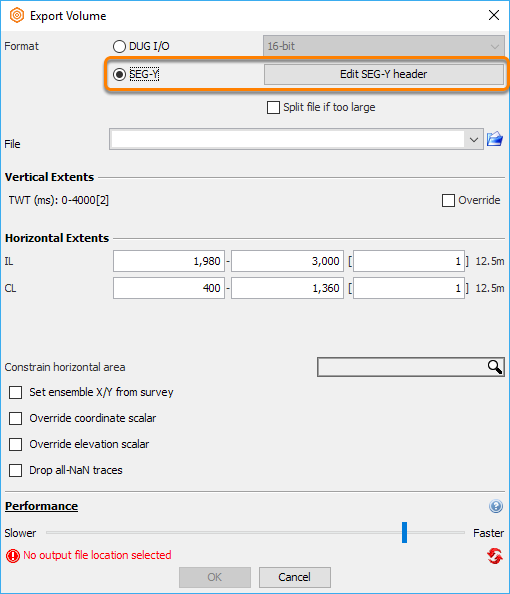

  3. Right-click the volume and click Export 'Volume'. The Export Volume window will be displayed.
  4. At Format, select SEG-Y.
  5. Click Edit SEG-Y header. To edit specific headers, please read:
