Using Litho-Fluid Models

Litho-fluid models from QI Workbench can be incorporated into crossplots. This can be a valuable tool when differentiating stratigraphy and identifying lithologies in the crossplot.

Selecting the model

  1. Open an existing crossplot or create a new crossplot.
  2. Open the LithoFluid Model tab.
  3. Select a single litho-fluid model (.dustat) or an interface model (.dupdf).
  4. PDF attributes: Select the distribution from the model to plot. These should correspond to the selected horizontal and vertical crossplot volumes.
  5. Attribute Scale: Apply a multiplier to the horizontal and vertical model values to correct for different model units or reflectivity adjustments
  6. Model Depths: Select the model depths to view

Tip: Multiple ellipses can be displayed. To deselect all, right-click a selected depth and choose Deselect All.

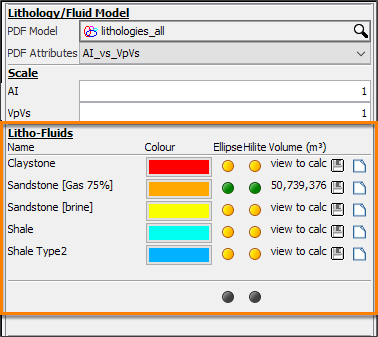

  1. Litho-Fluids:
    • Show Centres: Select to display the centres of the ellipses. Optionally, adjust the size of the dots.
    • Show Points: Select to display the crossplot points within the ellipses. Optionally, adjust the size of the dots and the limit for the dot count.
    • Colour: Set the PDF ellipse colour
    • Ellipses: Enable to show the PDF ellipse in the crossplot
    • Hilite: Enable to highlight corresponding points from the volumes in section views (as geobodies)
    • Volume: The gross rock volume of the highlighted areas (with highlight enabled)
    • Export volume: Export the geobodies as volumes (see Exporting volumes).
    • Export crossplot data: Export crossplot ellipse points as a .tsv text file (with or without source coordinates).

Tip: Click the circle at the bottom of the Litho-Fluids model to show/hide all the ellipses.

  1. The display style of the ellipses is controlled from the View tab (see Configuring Crossplots).

Note: When highlighting geobodies and ellipses overlap, entries at the top of the list take precedence over lower ones.

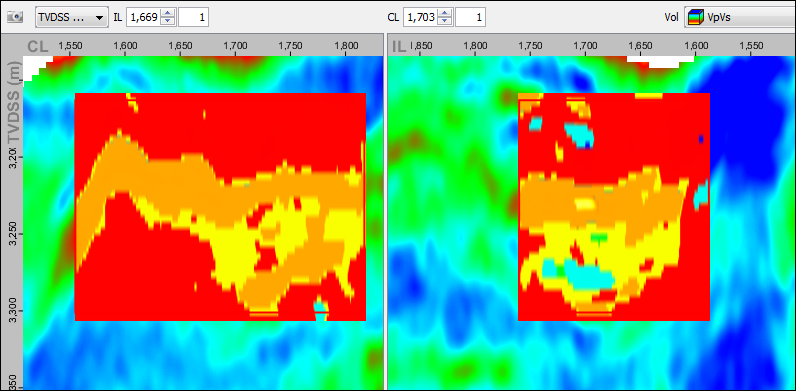

Here is an example of geobodies highlighted in the IL/CL View:

Using intercept and gradient PDFs

Litho-fluid interface models (intercept and gradient) from QI Workbench can be displayed in crossplots.

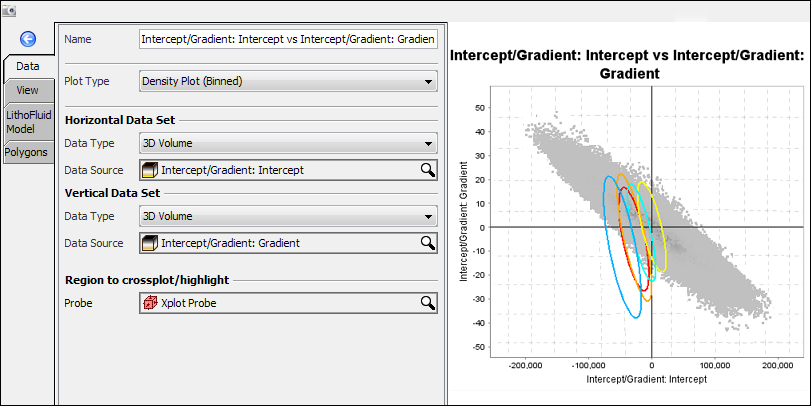

Display intercept and gradient PDF attributes in crossplot
  1. Open an existing crossplot or create a new crossplot.
  2. To generate the intercept and gradient volumes in Insight, see Intercept/Gradient.
    • Intercept volume: horizontal data set
    • Gradient volume: vertical data set
  3. Open the LithoFluid Model tab.
  4. PDF Model: Select the litho-fluid interface model (.dupdf format). Click the drop-down arrow, and select Interface Properties.
  5. PDF Attributes: Select the distribution from the model to plot (“intercept_vs_gradient”)
  6. Scale: Apply a multiplier to the horizontal and vertical model values to correct for different model units and/or reflectivity adjustments.
  7. Show Centres: Select to display the centres of the ellipses. Optionally, adjust the size of the dots.
  8. Show Points: Select to display the crossplot points within the ellipses. Optionally, adjust the size of the dots and the limit for the dot count.
  9. Model Depth: Select the model depths to view.

Note: Right-click and select Zoom to fit to ensure active ellipses are visible in the window.
