Combining Polygons

Polygons that are on the same plane can be combined to create a multi-shaped polygon product.

Combine polygons

Combine polygons
  1. In the Control Panel, open the Polygon tab.
  2. Hold Ctrl and click on the polygons that you wish to combine.

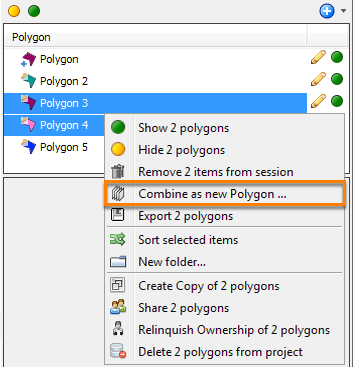

  3. Right click and select Combine as new Polygon.
    Note: The "Combine as New" option is not available if the polygons are on different planes. Ensure that polygons have the same time value before combining.

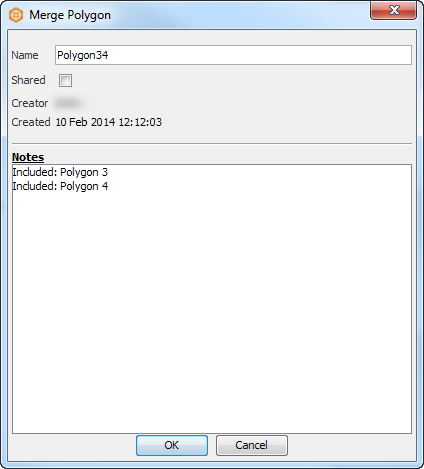

  1. Type a name for the new polygon and click OK.

Note: The creation of a new merged polygon will NOT replace/remove the existing polygons. To remove the individual polygons, right-click and delete them.
