What's New in DUG Insight 4.0
Welcome to the latest version of Insight! This doc includes new features in DUG Insight versions 4.0, 4.1 & 4.2.
Menu and Displays
- New 2D Gather View shortcut for 2D gathers (from the control panel)
- Spectra viewer adds a crosshair value for the current position
- Spectra viewer curves in the legend match order in panel
Wells
- NewSingle Well View
- Improvements to well curve and LAS exporting
Interpretation and Attributes
- CMY blend alternative for CMY/RGB/colour blending group
- Added support for importing VelocityManager ZMap horizons
- Updated gather view to clearly show interpolated and missing data
- Improved fault picking performance
- ShotPoint column available for custom 2D horizon exports
- Support for reading TrapTester faults
- Warn and confirm before resetting all mistie correction values
Volumes / Data Handling
- Improve start-up times for large projects
- Petrel Link supports 2D Data
- SEG-Y loader stores notes containing header information
- SEG-Y loader: Allow selection of angle units when loading angle gathers
- Convert arblines to 2D and export custom sections to SEG-Y, dugio
- Improved compatibility with OpenWorks for exported OWX well data
- Optionally set CMP-X/Y headers when exporting to SEG-Y (enabled by default)
- Better options for creating and using TVD volumes in feet
- Allow cross correlation of two depth volumes
- Improvements to Kingdom link automatic database attachment
- Data links include well status when importing wells
Processes:
- New process "NaN Removal" to easily in-fill or replace invalid values (Explorationist &Image Gather Processing module) with linear and nearest interpolation options.
- F-K transform
- F-X transform
- Trace Mix process for custom de-spiking and smoothing
- Correlation (Similarity): Fast and detailed similarity analysis
- Semblance (Similarity): Similarity analysis with better noise suppression
- Directional Correlation (Similarity): Very precise directional similarity analysis, enhance or supress features based on azimuth
- Curvature attributes for faults and fracture networks
- Volumetric Curvature process
- Curvature attributes for horizons
- Reassign geometry headers to update spatial trace headers
Support and Troubleshooting
Additional logging to assist with troubleshooting
Single Well View
- Introducing a fully customisable, high-resolution well view
- Use drag-and-drop to quickly build detailed views of well logs
- Customise all aspects of display
- Include traces extracted from any volume along the well bore
- Plot point-curve data such as Time-Depth points
- Display seismic data (or any volume) from the nearest inline, crossline, 2d-line or arbline

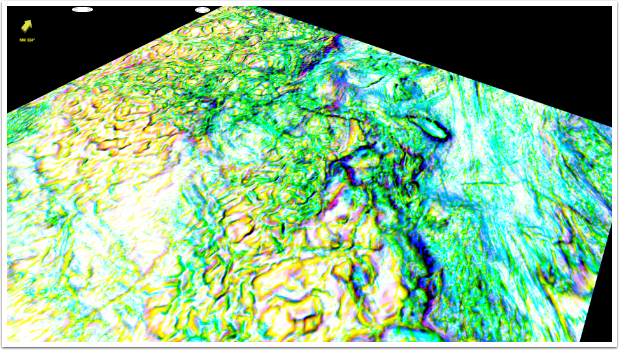

CMY blending

New CMY blending functionality. Use in conjunction with incoherence, dip angle and curvature for great results!
An CMY group allows you to designate the colours cyan, magenta and yellow to 3 different volumes for easy comparison in map, section and 3D views.
This process supports 2D, 3D and gather volumes.
For more information, seeCreating a New CMY Group.
NaN Removal
The new NaN process easily fills in or replace invalid values with user defined values using 4 available methods of calculations.
For more information, seeNaN Removal process.

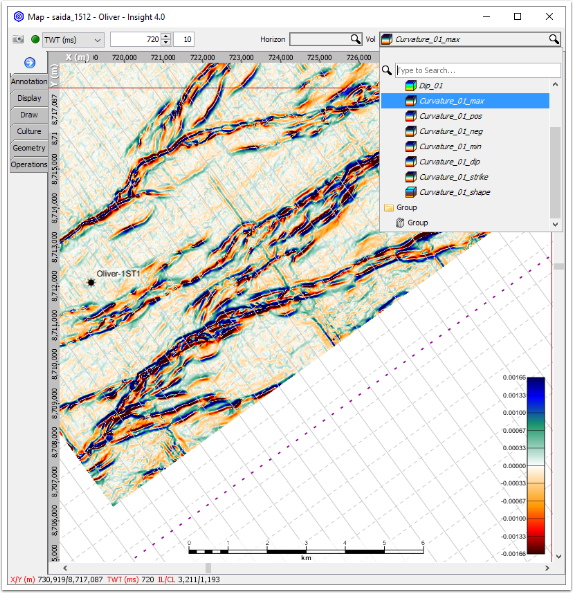

Volumetric Curvature Process

- Insight can calculate the structural curvature for a horizon (Using Horizon Properties), or volumetric curvature based upon a dip field (using a Curvature process).
Similarity Processes

We've added three very powerful new similarity-based processes for structural interpretation.
- Correlation (Similarity): Fast and detailed similarity analysis
- Semblance (Similarity): Similarity analysis with better noise suppression
- Directional Correlation (Similarity): Very precise directional similarity analysis, enhance or supress features based on azimuth
Version DUG Insight 4.0
Display
- Multiple 2D, IL, CL, gather views — different volumes and displays in multiple views, with optionally linked settings
- Big improvements to selecting and displaying 2D lines and volumes
- Interactive 2D line intersections
- Colour coded views
- Enhanced arbline navigation and positioning
- Fault projection
- Visible extent of views shown in map
- Trace-header graphs in section views
Wells
- Bulk import/export with support for OWX, LAS and ASCII
- Use a polygon to select which wells to load into a session
- Create a horizon from well markers
- Minimum-curvature desurveying for inclination / azimuth paths
- Better handling of horizontal and ascending wells
- Create checkshots from sonic logs or velocity models
- Smart checkshot resampling
Interpretation and Attributes
- Horizon interpretation visible at all scales in Map View
- RGB blending. Use with Spectral Decomposition for great results!
-
3D Dip and Azimuth to improve interpretation
- Instant Stratigraphic Flattening
-
Fault projection to aid in fault picking
- Improved on-the-fly amplitude extractions
-
Intercept and Gradient includes Goodness of Fit
- Signal & noise estimates added to spectral analysis
- Simple operations to create constant and gather horizons
- Body detection results can be picked and exported
Volumes / Data Handling
- Zmap Grid Import
- Fully configurable SEG-Y export
-
Improved control of 2D/3D mistie corrections:
Remove, Update, View and Export Corrections
New to the Explorationist module:
New to the Image Gather Processing module:
- Deconvolution
- Dip Field
- Dip Filter
- Header Maths
- F-K Transform
- FX Deconvolution
- Polygon Mute
- Frequency based Radon Transform
- Trace Chooser
- Trace Padding
- Trace Shift
- Velocity Re-Datum
New to the Gather Attributes module:

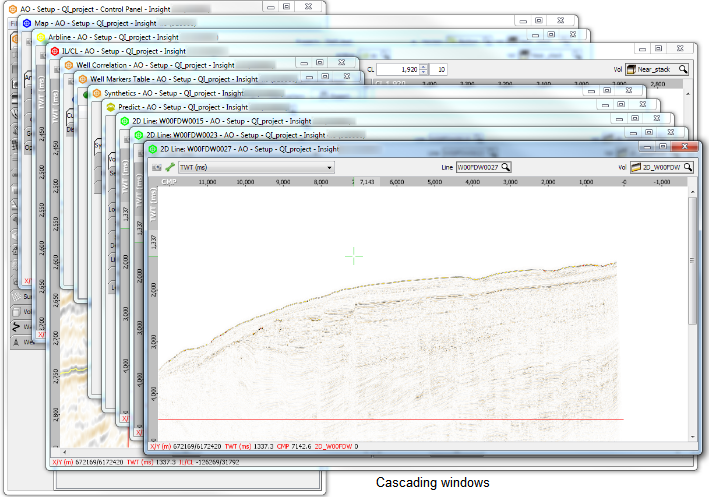

Multiview

With Insight 4.0, you can now enable multiple and independent 2D, arbline, IL/CL, map, and gather views! Each view can be linked by volumes, vertical/horizontal scale and position.
For more information, see Opening Multiple Views.

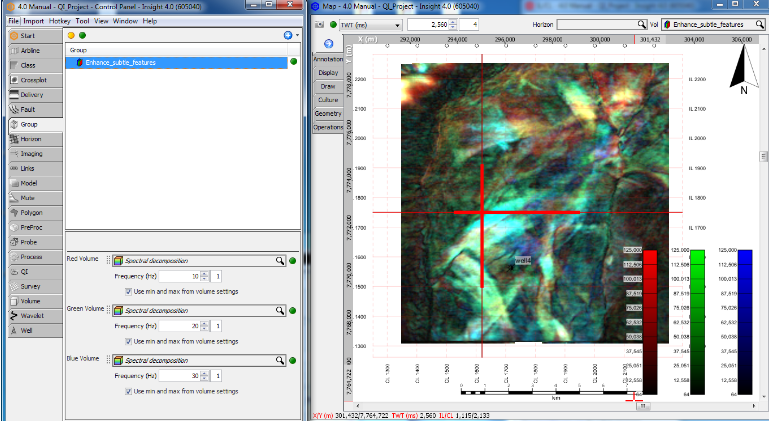

RGB blending

New RGB blending functionality. Use in conjunction with Spectral Decomposition volumes for great results!
An RGB group allows you to designate the colours red, green and blue to 3 different volumes for easy comparison in map, section and 3D views.
This process supports 2D, 3D and gather volumes.
For more information, see Creating a New RGB Group.
Well improvements

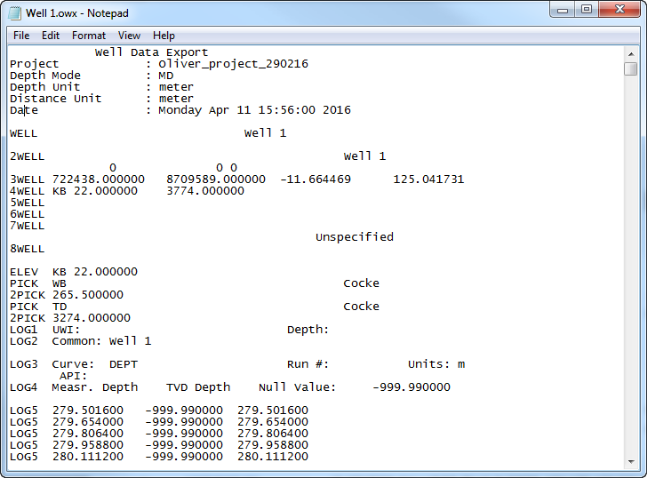

Bulk well import/export

Where previously you can only import and export individual well data (i.e. paths, checkshots, markers, curves), now you can import and export all of them at the same time in OWX format.
For more information, see Importing All Well Data and Exporting All Well Data.
Arblines
- Quickly create a new arbline from Map View
- Repick/delete Arblines directly from Map View
- Open Arbline View directly from Map View
- Arblines can now be projected by set distance
- Snap/unsnap arblines to 2D surveys
For more information, see the Arbline chapter.
New horizon operations

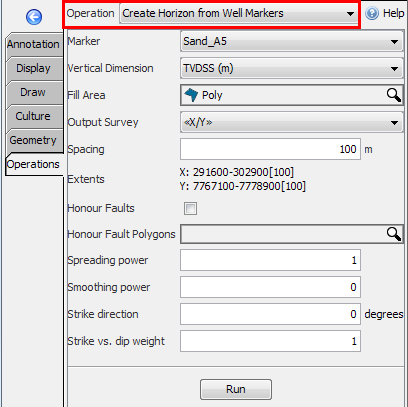

Create horizon from well markers

This new horizon operation creates a regular IL/CL or X/Y horizon from a set of well markers.
For more information, see Create Horizon from Well Markers.

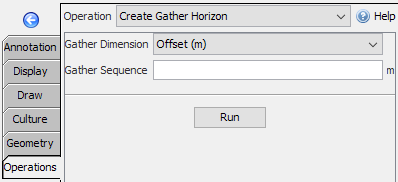

Create gather horizons from IL/CL horizons

This new horizon operation creates a gather horizon from regular IL/CL horizons.
For more information, see Create Gather Horizon.
Process improvements

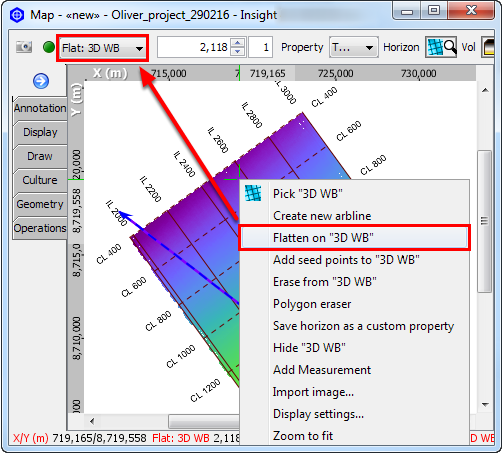

Create Flattener process directly from Views

Right click on a horizon in any view and select Flatten on "Horizon". This will instantly create a Flattener process with that horizon as the Base Horizon, and the domain in the Map View will automatically switch to the flattened view.
For more information, see Flattener.

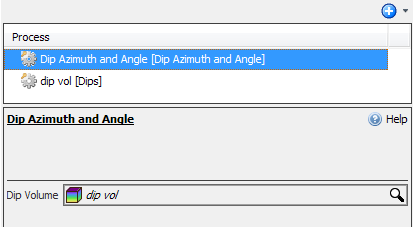

Dip Azimuth and Angle attribute

This process converts a DUG Insight 3D dip field volume into two output volumes. The first is the azimuth of maximum dip, measured in degrees clockwise from map north. The second is the maximum dip angle.
For more information, see Dip Azimuth and Angle.

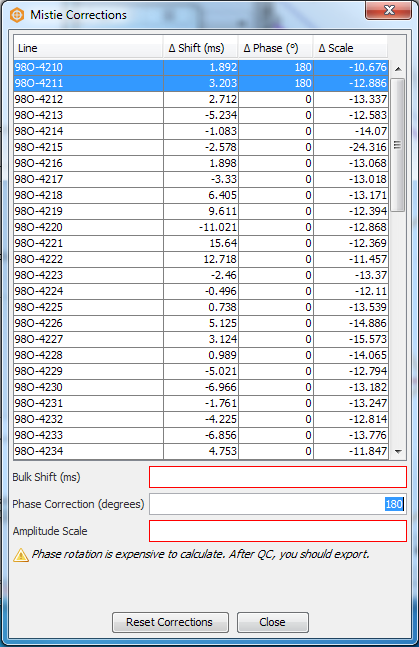

Mistie

Manual misties can be applied, edited or removed in bulk.
From the Configure Volume window, click Configure Mistie Corrections to view all misties in a table. This table can also be exported to csv.
For more information, see Manual Mistie Correction.

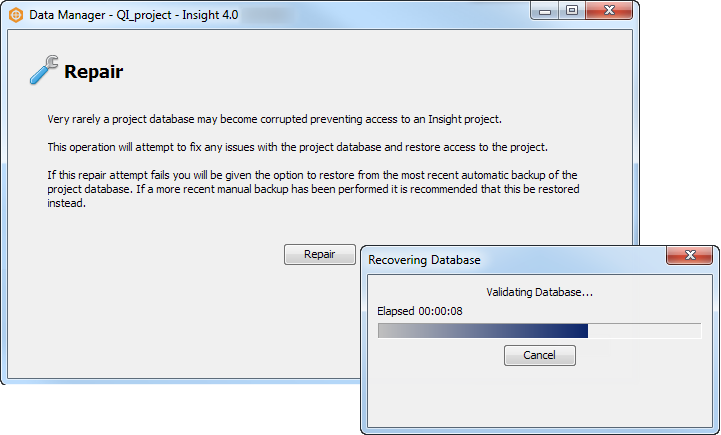

Repair project database

A new Repair operation in Data Manager to fix any issues with the project database and restore access to the project.
For more information, see Repair a Project Database.
The new NaN process easily fills in or replace invalid values with user defined values using 4 available methods of calculations.
For more information, see NaN Removal process.
New CMY blending functionality. Use in conjunction with incoherence, dip angle and curvature for great results!
An CMY group allows you to designate the colours cyan, magenta and yellow to 3 different volumes for easy comparison in map, section and 3D views.
This process supports 2D, 3D and gather volumes.
For more information, see Creating a New CMY Group.
